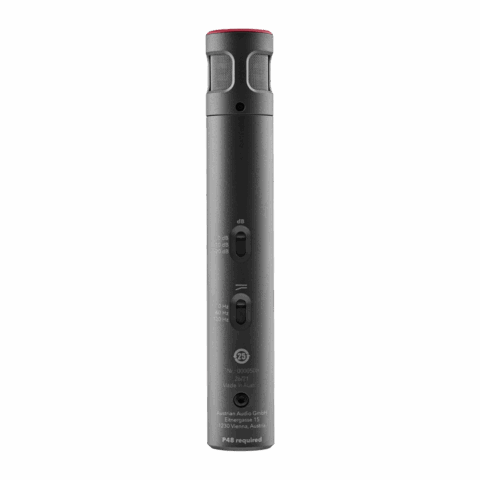

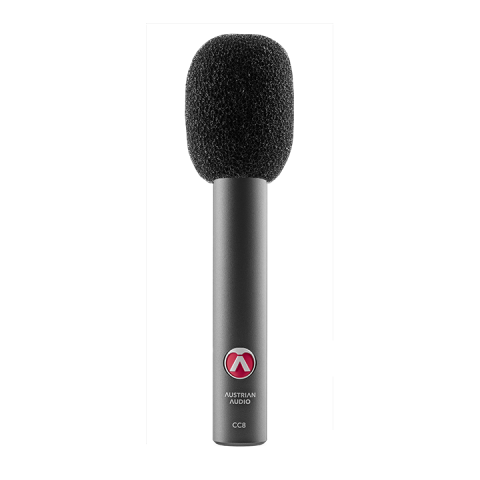

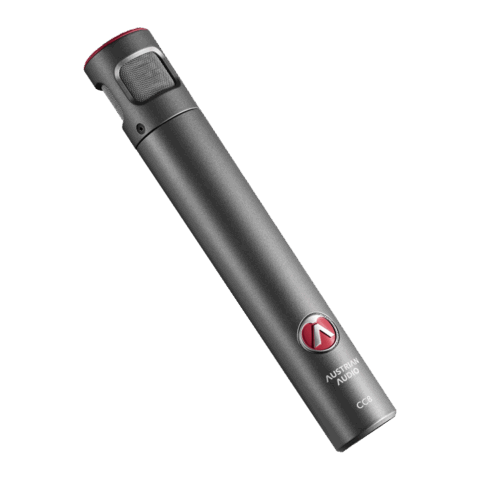

Austrian audio CC8
The Austrian Audio CC8 is a small-diaphragm condenser microphone designed around a hand-built OCC7 capsule, inspired by the legendary CK1 capsule.
This capsule offers a linear frequency response, a natural, open sound, and detailed reproduction of transients, without aggressive treble, even at high volume levels.
Each microphone is measured and calibrated at the factory to a strict tolerance, making it easy to pair multiple CC8s for stereo configurations.
The CC8 is suitable for capturing acoustic instruments such as guitars, pianos, brass, strings, percussion and full drums, offering optimum fidelity for professional studio recordings or live situations.
Highlights :
OCC7 capsule inspired by a legendary reference for a natural, open sound
Linear frequency response and low self-noise
Strict factory tolerance for easy pairing
Switchable filters and pads for rapid adaptation to different sources
Rugged construction for professional use
Microphone Type: Small-diaphragm condenser, true condenser technology
Directional Pattern: Cardioid
Capsule: Hand-crafted OCC7, 3 µm gold diaphragm on PEN
Frequency Response and Performance
Frequency Response: 20 Hz – 20 kHz
Sensitivity: 15 mV/Pa
Equivalent Noise Level: 16 dB SPL (A)
Maximum Sound Pressure Level (SPL): 156 dB SPL
Filters and Settings
Switchable High-Pass Filter: 60 Hz and 120 Hz (2nd order)
Switchable Pad: -10 dB and -20 dB
Electronics and Power Supply
Output Impedance: 275 Ω (balanced)
Recommended Load Impedance: > 1 kΩ
Power Requirements: 48 V Phantom Power (< 3 mA)
Connector: 3-pin XLR
Physical
Dimensions: 140 × 23 × 23 mm
Weight: Approx. 160 g
Construction: Robust metal body, capsule, and grille

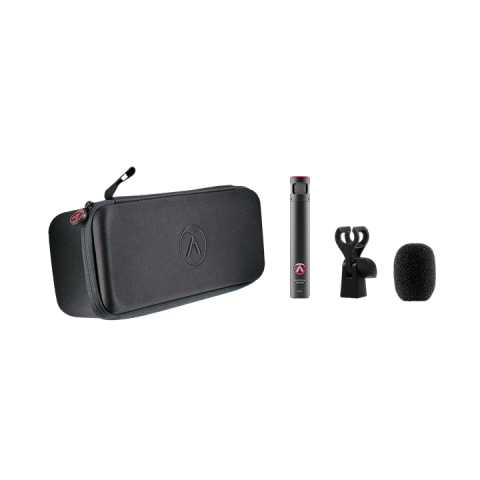

Included Accessories
OCH8 Microphone Clip
CCW8 Windscreen
MSC8 Carrying Case
Euroguitar Referenz : 121797
