Chauvet dj Sentinel Wash Q7Z ILS

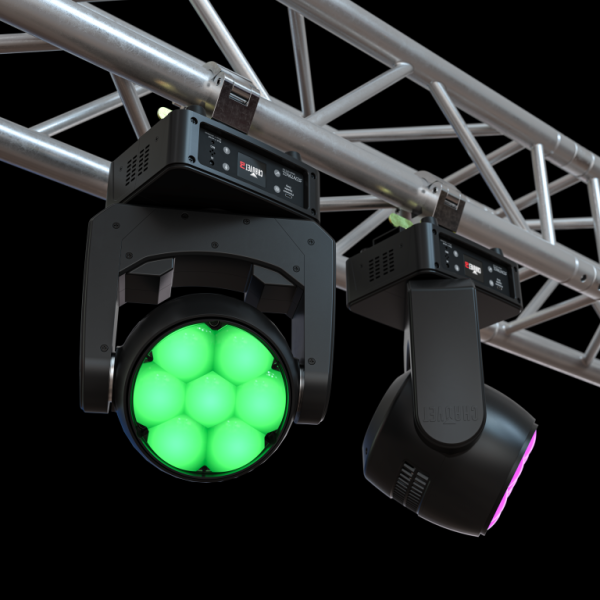

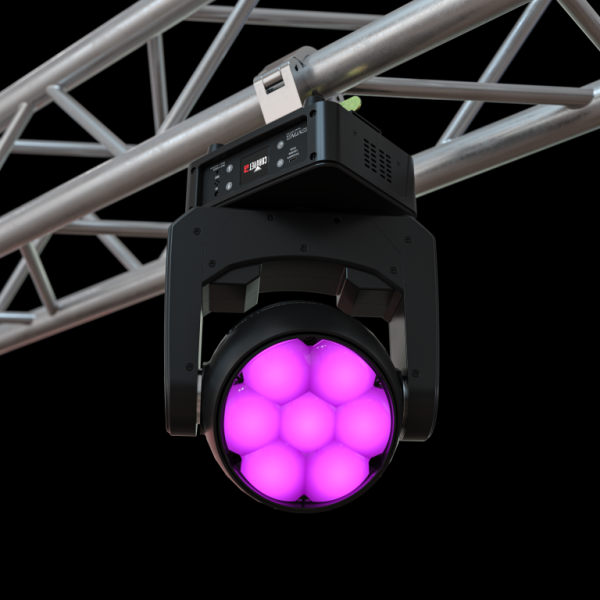

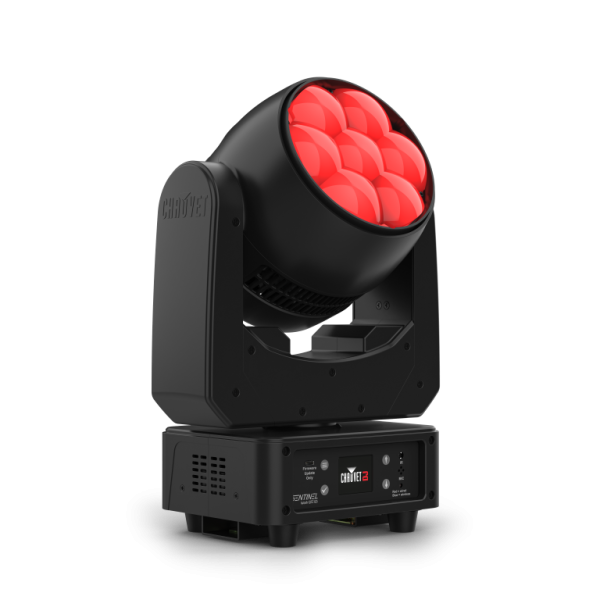

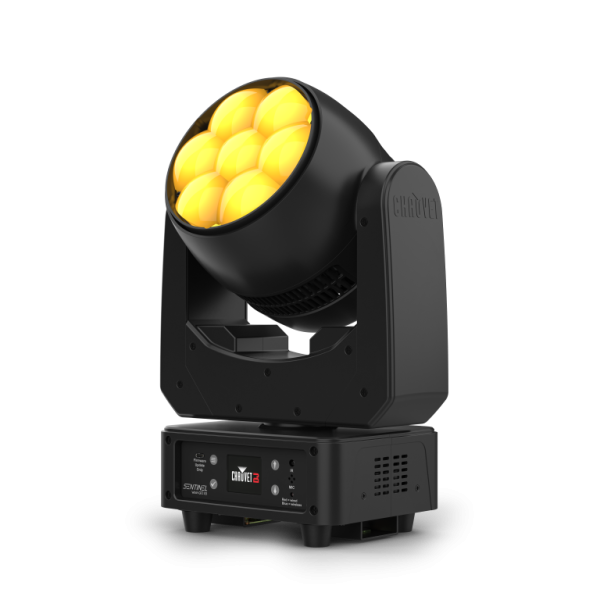

The Sentinel Wash Q7Z ILS is a compact and versatile wash moving head designed to deliver powerful lighting performance with excellent beam control. Equipped with seven 20W RGBW LEDs, it provides a rich and consistent color mix suitable for both stage and event lighting.
Its motorized zoom allows for precise beam angle adjustment, from a tight beam to wide coverage as needed. This flexibility makes it ideal for both short- and long-throw applications.
Featuring a built-in D-Fi transceiver, it enables wireless transmission of DMX or ILS signals, simplifying setups. Compatible with the ILS ecosystem, it integrates easily into synchronized configurations. The Totem mode ensures the beam remains focused on a defined area, perfect for the dance floor.
Easy to transport and set up, it also allows for daisy-chaining to reduce cabling, making it an efficient solution for mobile vendors and fixed installations.
Key Features
Compact RGBW LED Wash Moving Head (7 x 20W)
Motorized zoom for beam adjustment (from spot to wash)
Powerful, seamless color mixing
Built-in D-Fi transceiver (wireless DMX and reed switch compatibility)
Reed switch compatibility for easy synchronization

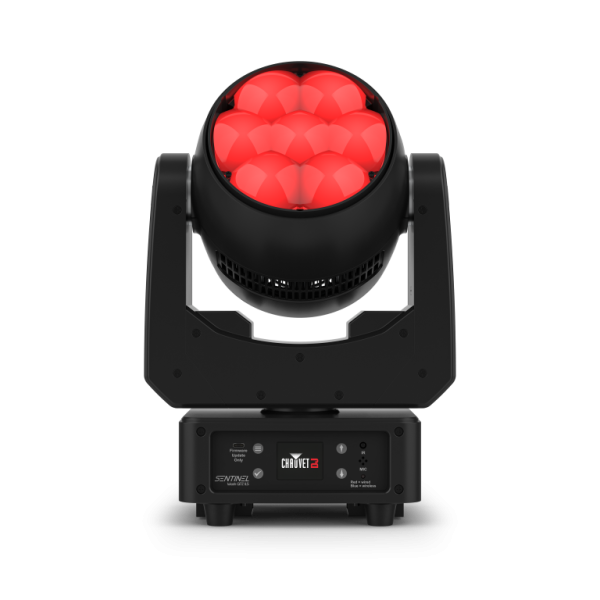

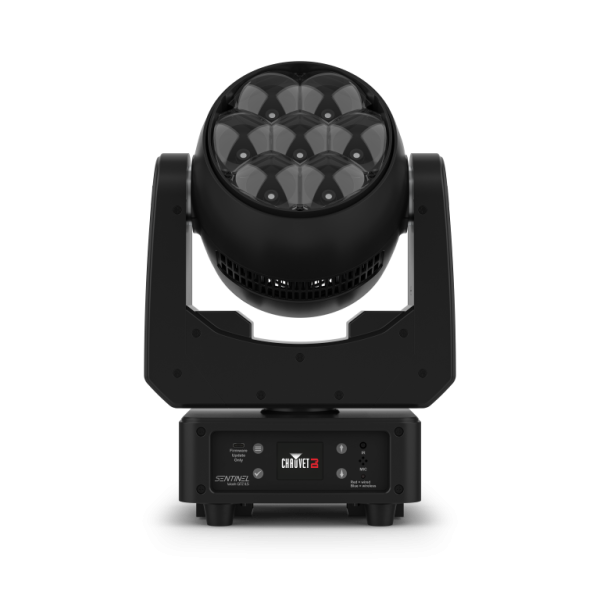

Color LCD screen for intuitive navigation
Totem mode for focused beam control
Daisy-chaining for simplified wiring
Portable design compatible with CHS-40 VIP Gear Bag
LED lifespan: approximately 50,000 hours
Zoom: 5° to 27°
Illuminance:
30,537 lux at 2m (narrow 5° beam)
3,390 lux at 2m (wide 27° beam)
Strobe: 0 to 20 Hz
Pan/Tilt: 540° / 225°
Pan/Tilt ranges: 180°, 360°, 540° / 90°, 180°, 225°
DMX channels: 9 or 14

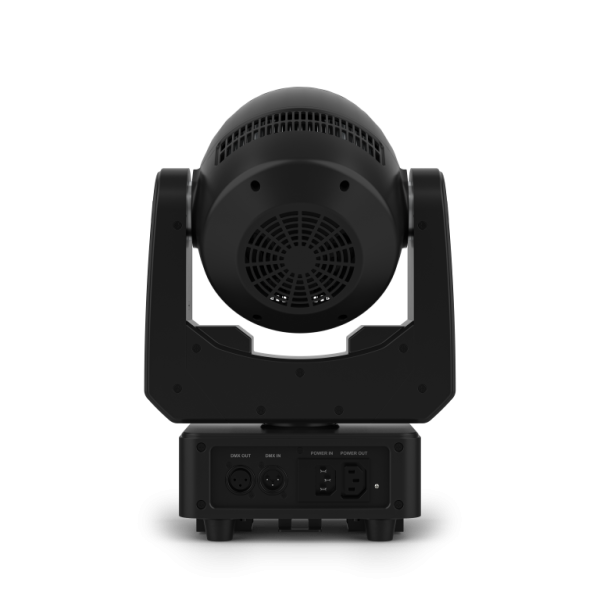

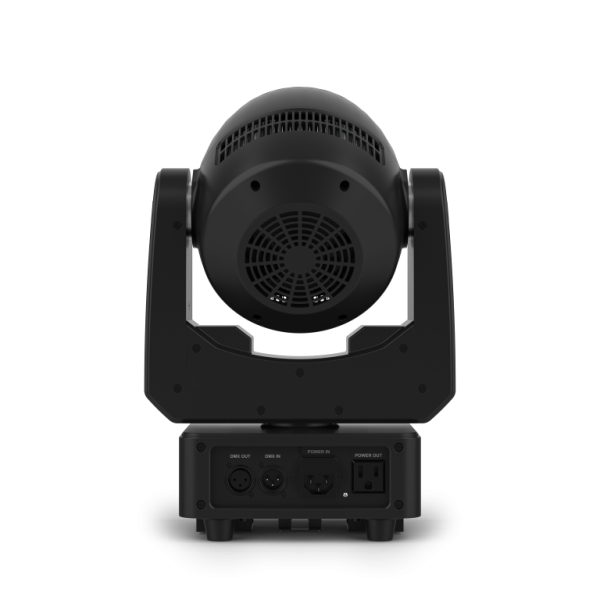

Connectors: 3-pin XLR
Wireless: Integrated D-Fi (DMX/ILS)
Power supply: 100 to 240V AC, 50/60Hz (auto)
Power consumption: 148 W (120 V) / 146 W (230 V)
Daisy-chaining: up to 6 units (120 V) / 12 units (230 V)
Power cord length: 1.5 m
Dimensions: 362 x 255 x 188 mm
Weight: 6.3 kg
Optional controllers: IRC-6, ILS Command
Certifications: CE, RoHS, FCC
Euroguitar Referenz : 122512
