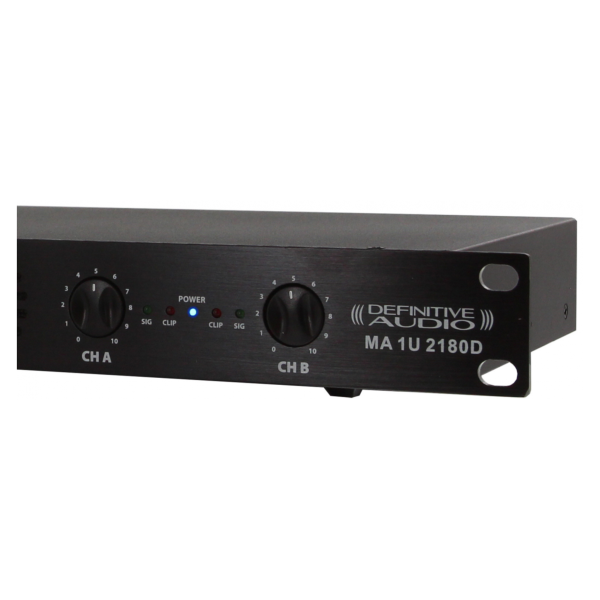

Definitive audio MA 1U 2180D
The Definitive Audio MA 1U is a 1U amplifier with 2x180W RMS at 4 ohms.
The MA 1U 2180D is a 2-channel amplifier specifically designed for use in restaurants, bars, meeting rooms and other spaces where sound is required. They are built around a Class D power supply circuit, allowing very high performance with very low weight. The height is 1U and in 19" rack format, they will fit in a flight case or a control room very easily and will occupy a very small space.
- Continuous power: 4 ohms: 2 x 180W and 8 ohms: 2 x 110W
- Bridge mode: 8 ohms: 2 x 360W
- Damping factor: 300
- Input impedance: 10 Kohms unbalanced, 20 Kohms balanced
- Frequency response: 20 Hz-20 KHz +/-0.5dB
- THD + N: 0.05%.
- Distortion (SMPTE-IM): <0.5%.
- S/N RATIO: >100 dB
- Input connectors : XLR and Jack combo

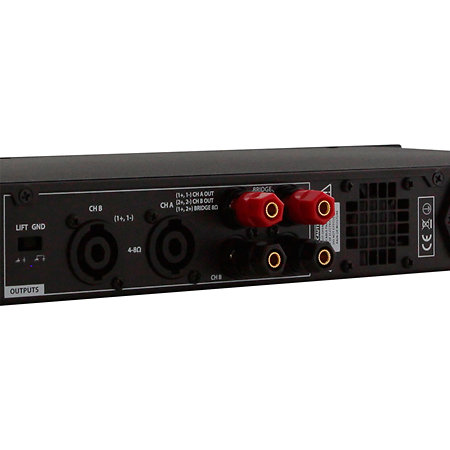

- Output connectors: OUTPUT Terminals and Speakon
- Front control: Power, volume, bridge, parallel and stereo switches
- Rear control: Mode switch

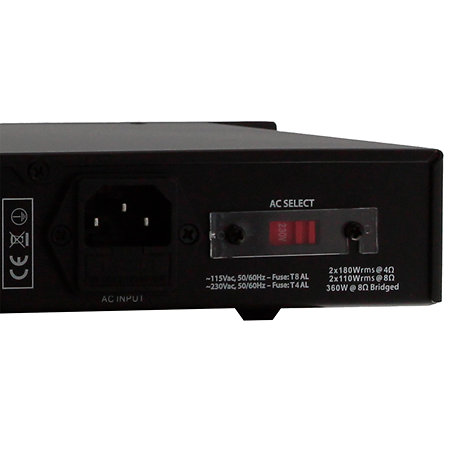

- Power supply: AC 230V, 50-60Hz
- Dimensions: 482 x 230 x 44 mm
- Weight : 2,60 Kg
