Dynacord Powermate 600-3

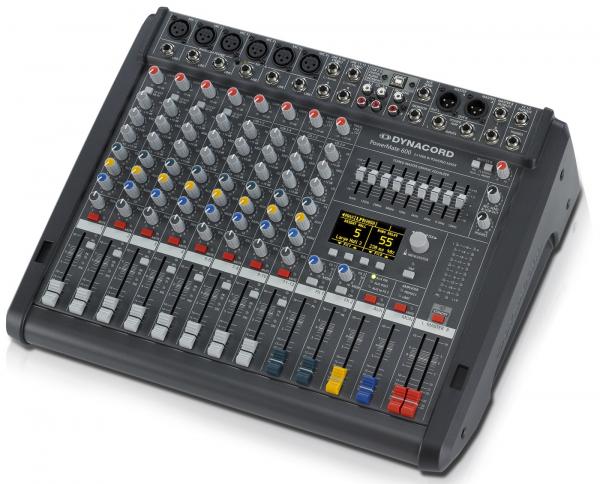

The dynacord Powermate 600-3 is an amplified mixer.
The PowerMate compact mixers incorporate extensive know-how, based on our research, development and communication with our customers in the professional audio market, for decades.
It integrates no less than six dedicated audio devices in a compact frame: a mixing console, two effects units, a graphic equalizer, a USB audio interface and a power amplifier. Each of these is of the highest quality, as you would expect from a stand-alone device. The PowerMate is a true all-rounder for almost any application, with maximum functionality for minimum size.
The mixing section starts with 6 low-noise discrete mic preamps. Three auxiliary busses, one of which is switchable to pre/post fader, allow great flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate-reverbs. In addition, each preset can be edited and stored in 20 user memories.
The integrated USB audio interface allows 4 channels of playback and 4 channels of recording to be shared simultaneously with a PC or Mac (see available driver information), using the 24-bit/96 kHz studio standard. An additional MIDI interface allows the integration of instruments such as keyboards. A license for Steinberg's Cubase software is included in the package.
Microphone Inputs (XLR) 6
Auxiliarys (MON, FX, AUX) 1 Pre, 1 Post, 1 Pre/Post switchable
Max. Single Channel Output Power, Dynamic-Headroom, IHF-A
into 2.66 Ω 2 x 1600 W
into 4 Ω 2 x 1250 W
into 8 Ω 2 x 675 W
Max. Single Channel Output Power, Continuous, 1 kHz, THD = 1%
into 2.66 Ω 2 x 1350 W
into 4 Ω 2 x 1150 W
into 8 Ω 2 x 650 W
Maximum Midband Output Power, 1 kHz, THD = 1%, Dual Channel
into 2.66 Ω 2 x 1350 W
into 4 Ω 2 x 1000 W
into 8 Ω 2 x 600 W
Rated Output Power, 20 Hz to 20 kHz, THD < 0.5%, Single Channel
into 4 Ω 2 x 900 W
into 8 Ω 2 x 450 W
Maximum Output Voltage, of power amplifier, 1 kHz, no load 74 Vrms
THD, at 1 kHz, MBW = 80 kHz
MIC input to Master A L/R outputs, +16 dBu, typical < 0.005%
POWER AMP INPUTS to Speaker L/R outputs < 0.075%
DIM 30, power amplifier, 3.15 kHz, 15 kHz < 0.05%
IMD-SMPTE, power amplifier, 60 Hz, 7 kHz < 0.15%
Frequency Response, -3 dB, ref. 1 kHz
Any input to any Mixer output 15 Hz to 70 kHz
Any input to Speaker L/R output 20 Hz to 30 kHz
Crosstalk, 1 kHz
Amplifier L/R < -85 dB
Channel to Channel < -80 dB
Mute- & Standby-Switch attenuation > 100 dB
Fader & FX/AUX/MON-Send attenuation > 85 dB
CMRR, MIC input, 1 kHz > 80 dB
Input Sensitivity, all level controls in max. position
MIC -74 dBu (155 µV)
LINE (Mono) -54 dBu (1.55 mV)
LINE (Stereo) -34 dBu (15.5 mV)
CD (Stereo) -34 dBu (15.5 mV)
POWER AMP INPUTS +8 dBu (1.95 V)
Maximum Level, mixing desk
MIC inputs +11 dBu
Mono Line inputs +31 dBu
Stereo Line inputs +31 dBu
All other inputs +22 dBu
All other outputs +22 dBu
Input Impedances
MIC 2 ?
CD In 10 ?
All other inputs > 15 ?
Output Impedances
Phones 47 Ω
All other outputs (balanced/unbalanced) 150 Ω / 75 Ω
Equivalent Input Noise, MIC input, A-weighted, 150 ohms -130 dBu
Noise, Channel inputs to Master A L/R outputs, A-weighted
Master fader down -100 dBu
Master fader 0 dB, Channel fader down -92 dBu
Master fader 0 dB, Channel fader 0 dB, Channel gain unity -82 dBu
Signal/Noise-Ratio, power amplifier, A-weighted, 4 Ω 105 dB
Output Stage Topology, amplifier Class D
Equalization
LO Shelving ±15 dB / 60 Hz
MID Peaking ±12 dB / 2.4 kHz
HI Shelving ±15 dB / 12 kHz
Master EQ 9-band (63, 125, 250, 500, 1k, 2k, 4k, 6.3k, 12kHz) ±10 dB / Q = 1.5 to 2.5
Filter
LO-CUT, mono inputs f = 80 Hz, 18 dB/oct., switchable
Speaker Processing LPN, switchable
Effects
Type 2 x Stereo 24/48-bit multi effects processors
Effects presets 100 Factory + 20 User, Tap-Delay
Remote control Footswitch, MIDI
Display 128 x 64 pixels, OLED
Digital Audio Interface
Channels 4 In / 4 Out
AD/DA Conversion 24-bit
Sampling Rate 44.1 / 48 / 88.2 / 96 kHz
PC Interface USB2.0, Female Type B
Supported OS See documentation
Peak Display 6 dB before Clip
MIDI Interface 5-pin DIN connector, In / Out
Output Power Control (Speaker Protection) Adjustable longterm RMS Limiter
Protection
Mixer Outputs, relay controlled AUX, MON, MASTER A L/R
Amplifier Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-on Delay, Back EMF
Switching Mode Power Supply (µC controlled) Inrush Current Limiters, Mains Over/Undervoltage, Mains Over Current, High Temperature
Cooling Continuous speed controlled Fans
Phantom Power, switchable 48 V DC
Power Requirements (SMPS with auto range mains input) 100 V to 240 V AC, 50 Hz to 60 Hz
Power Consumption, at 1/8 maximum output power, 4 Ω 450 W
Safety Class I
Ambient Temperature Limits +5 °C to +40 °C (40 °F to 105 °F)
Dimensions (W x H x D), mm With lid: 438.8 x 161.7 x 362.5 Rack-mount: 483 x 135.8 x 310.3 (7 HU)
Weight
Net Weight, without lid 9.0 kg
Net Weight, with lid 9.5 kg
Shipping Weight 12 kg
Warranty 36 months
Optional Accessories
Rack Mount Kit F01U214880 (DC-RMK-600-3)
FS 11 (Footswitch with LED) F01U100598 (DC-FS11)
Carrying bag F01U259014 (DC-BAG-600PM)
