Elektron TONVERK
The TONVERK is a machine built for adventure: an instrument designed to propel you toward extraordinary musical creation and limitless sonic exploration.
Tonverk is both a revelatory pioneer and a marvelous labyrinth to delve into, offering multiple solutions for capturing, processing, and routing your sound.
It can be:
- Your versatile polyphonic sampler.
- Your routing playground.
- Your effects mixer.
- Your machine with tracks within tracks.
- Your multi-tonal factory.
Tonverk offers eight audio tracks, usable in different ways depending on your creativity. In addition, there are:
four bus tracks,
three send tracks,
one mix track.
Everything is designed for unlimited routing, putting a wide range of new effects at your fingertips to use anywhere in the machine. It's a true gateway to experimentation and sonic enjoyment, with the promise that the beginning is just a glimpse of what awaits you.
Tonverk includes a wide selection of effects, including many new ones.
Included: modulation galore, extensive routing possibilities (internal and external), and two sampling modes:
Recorder: for simple audio recording, internal or external.
Auto Sampler: use MIDI to automatically multisample your favorite instrument.
And that's not all: you'll also find the essential improvements of the Elektron workflow.
Machines available per audio track:
SINGLE PLAYER
Play single WAV files (mono or stereo) polyphonically. Change the playback behavior of your samples, set loop points, and use the crossfade parameter for perfectly smooth loops.
MULTI PLAYER
Load a multisampled instrument from the Tonverk library and play it polyphonically. With the Auto Sampler, you can also create your own multisampled instruments.
SUBTRACKS
Add 8 monophonic multitimbral subtracks to a single track, each with its own sample, sequencer, and parameters. 8 in 1!
MIDI
Turn the selected track into a MIDI track.
8 stereo audio tracks
4 bus tracks
3 send effects tracks
1 mix track
4 selectable machines per audio track:
• Single Player
• Multi Player
• Subtracks
• MIDI (also available on bus tracks)
1 bandwidth digital filter per track/subtrack
2 assignable LFOs per audio track
2 assignable effects LFOs per audio track
1 assignable modulation envelope per audio track
2 assignable LFOs per effects bus, send track, and mix track
Modulation configuration per track (pitch bend, mod wheel, breath control, aftertouch)
Step Editing
Advanced routing options
Varied sound library (single samples, drum kits, multisampled instruments, and presets)
MIDI Features
16-note polyphony per step
16 assignable CC controllers
2 assignable LFOs per Track
Performance Features
2 Trig Modes (Tracks / Velocity)
Keyboard Mode with 36 Scales Available
Song Mode
Chord Mode
Sequencer Features
Up to 256 Steps per Pattern and per Track
Arpeggiator on each Audio & MIDI Track
Polyphonic Sequencing
Independent Pattern Length per Track
Individual Tempo Multiplier per Track
Parameter Locks
Trig Conditions and Probabilities
Retrig (Audio & MIDI Tracks Only)
Micro Timing
Independent Sequencer Lanes
Effects (Depending on Track Type)
Comb +/– Filter
Filter Bank
Low Pass Filter
Multi-Mode Filter
Infinite Flanger
Panoramic Chorus
Phase 98
Warble
Chrono Pitch
Frequency Warper
Compressor
Degrader
Dirtshaper
Daisy Delay
Saturator Delay
Rumsklang Reverb
Supervoid Reverb

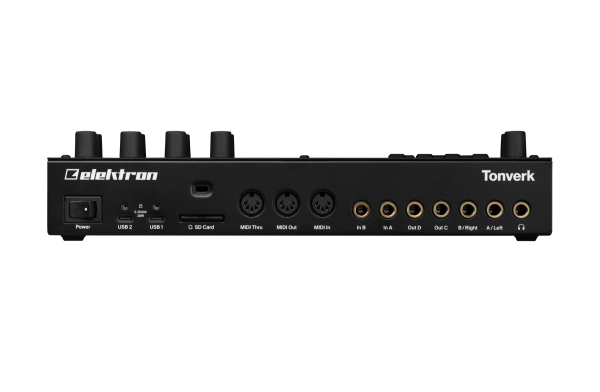

Hardware
128 × 64 pixel OLED display
4 x 1/4” audio outputs (balanced impedance)
2 x 1/4” balanced audio inputs
1 x 1/4” stereo headphone output
48 kHz, 24-bit D/A and A/D converters
2 USB-C ports
MIDI In/Out/Thru with DIN Sync output
SD card reader
Physical Specifications
Robust steel enclosure
Dimensions: W 286 × D 176 × H 63 mm (11.3? × 6.9? × 2.5?, including knobs and feet)
Weight: approx. 1.85 kg (4.08 lbs)
VESA mount: 100 x 100 mm (M4 screws max. 7 mm)
Miscellaneous
Class-compliant USB audio interface
External input mixer with routable outputs
3-year Elektron warranty
Included in the box
64 GB SD card
PSU-5 power supply
Elektron USB-C cable
Exclusive artwork
