Hk audio ELEMENTS MK2 BIG BASE
The HK AUDIO ELEMENTS MK2 BIG BASE is a complete modular sound system from the ELEMENTS MK2 series, designed for events requiring higher output levels and extended low-frequency response. It is particularly well-suited for conferences, presentations, concerts, DJ sets, gala and Top 40 bands, religious services, and corporate events.

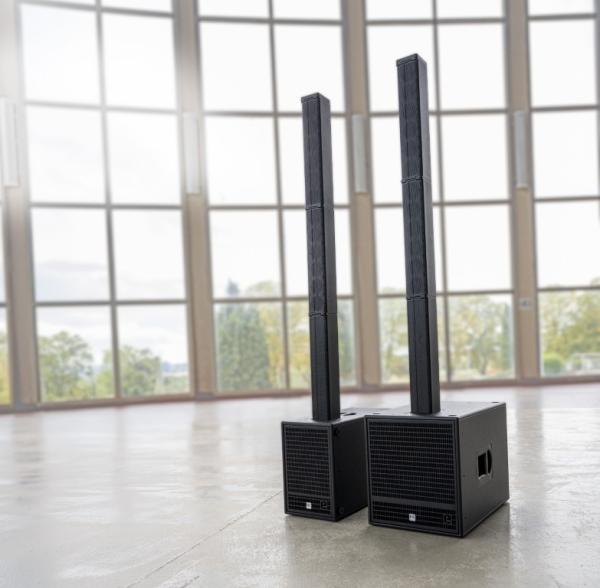

The system comprises two ELEMENTS MK2 635 column modules, an ELEMENTS MK2 SPACER, and an ELEMENTS MK2 115 Sub A active subwoofer.
The two ELEMENTS MK2 635 modules utilize a modular line array design to ensure uniform sound coverage and excellent throw. Each module incorporates six 3.25" drivers paired with six Phase Plug waveguides, offering 90° x 5° dispersion.
The ELEMENTS MK2 115 Sub A subwoofer features a 15" driver with a 3.5" voice coil. Its bi-amped Class D amplifier delivers 1,500 W RMS and up to 3,000 W peak power. It achieves a maximum peak SPL of 128 dB and offers extended low-frequency response down to 38 Hz (-6 dB).

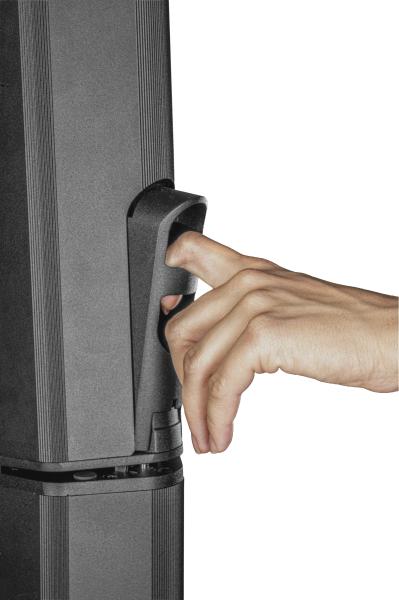

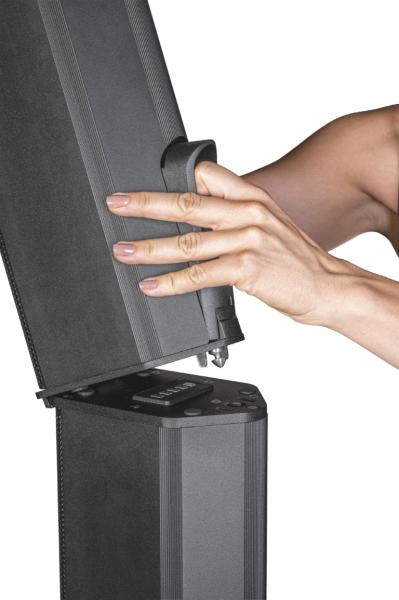

The HK Audio SnapLock system allows for quick, tool-free assembly of the subwoofer, spacer, and column modules. Mechanical connection and signal transmission are integrated into the components, enabling rapid setup without visible cables running along the column.
The integrated DSP automatically configures the system and detects the number of connected mid/high modules to apply the appropriate filters. Flat, Contour, Voice, and Remote presets allow the system to be quickly adapted to various applications.
The BIG BASE also incorporates the HK Audio DSP CONTROL platform and Ethernet network connectivity, enabling system control and Milan AVB digital audio transmission.
According to HK Audio, this configuration is suitable for audiences of up to 500 people, depending on the program material, the venue, and the desired maximum sound level.
SYSTEM COMPONENTS
2 x HK AUDIO ELEMENTS MK2 635
1 x HK AUDIO ELEMENTS MK2 SPACER
1 x HK AUDIO ELEMENTS MK2 115 Sub A
APPLICATIONS
Conferences and presentations
Concerts and live events
DJs
Gala / Top 40 bands
Traditional and modern religious services
Corporate events
Estimated audience: up to 500 people
Quantity: 2
Enclosure type: Sealed
Drivers per module: 6 x 3.25"
Waveguide per module: 6 x Phase Plug
Peak power handling per module: 250 W
Nominal impedance per module: 12 ohms
Maximum peak SPL per module: 132 dB
Crossover frequency: 175 Hz
Frequency response (-6 dB): 170 Hz – 18 kHz
Frequency response (-10 dB): 145 Hz – 20 kHz
Horizontal x vertical coverage (-9 dB): 90° x 5°
Input: 1 x E-Connect MK2
Output / parallel output: 1 x E-Connect MK2
Enclosure material: Aluminum
Finish: Powder-coated
Color: Black
Grille: Steel with anti-corrosion treatment
Dimensions per module (W x H x D): 11.2 x 56 x 15.1 cm
Weight per module: 7.3 kg
MK2 SPACER SPECIFICATIONS
Type: Spacer / spacing element
Material: Aluminum
Finish: Powder-coated
Color: Black
Input: 1 x E-Connect
Output / Parallel Output: 1 x E-Connect
Dimensions (W x H x D): 11.2 x 56 x 15.1 cm
Weight: 3.85 kg
SPECIFICATIONS FOR THE ELEMENTS MK2 115 Sub A
Type: Active subwoofer
Enclosure type: Bass-reflex
Woofer: 1 x 15" with 3.5" voice coil
Max. Peak SPL: 128 dB
Crossover frequency: 175 Hz
Frequency response (-6 dB): 38 Hz – crossover frequency
Frequency response (-10 dB): 35 Hz – crossover frequency
Preamp type: DSP preamp
Amplification type: Class D bi-amplified
RMS output power: 1500 W
Peak output power: 3000 W
Power consumption: 2.5 A / 100–240 V nominal according to EN 62368-1
Maximum input level: 20 dBu
Speaker protection: RMS/Peak limiter
Sampling frequency: 48 kHz
DSP functions: 10-band parametric equalizer with variable filter characteristics, high-pass filter, low-pass filter, polarity, DSP-Out delay up to 50 ms, limiter, mute
Remote control software: HK Audio DSP CONTROL
Presets: Flat, Contour, Voice, Remote
Digital audio transmission: Milan AVB
Analog input: 1 x balanced XLR
Analog output: 1 x balanced XLR
DSP output: 1 x balanced XLR
Satellite output: 1 x E-Connect MK2
Network input: 1 x EtherCON RJ45
Network output: 1 x EtherCON RJ45
Mains power: 1 x IEC connector
Enclosure material: Hybrid construction
Enclosure finish: Water-based acrylic paint
Color: Jet Black (RAL 9005)
Handles: 2 x HK Audio MultiGrip
Grille: Steel grille with anti-corrosion treatment and acoustic foam
Dimensions (W x H x D): 47.8 x 53.1 x 68.1 cm
Weight: 39.4 kg
