Neumann KH 870 II AES67
With twice the power of the KH 810 II, the KH 870 II AES67 is the new flagship of our subwoofer range.
It includes the same 7.1.4 bass management features as the KH 810 II and is designed for large cabins, where maximum dynamic reserve and absolute precision are essential.
The KH 870 II is powerful enough for the large studio monitors in the KH range, such as the KH 420.
With its multi-channel capabilities, it's the perfect addition to immersive audio systems.
Twelve AES67 input channels can be reproduced by the subwoofer itself, and up to 11 studio monitors connected to its analog or digital AES3 (BNC) outputs. The AES67 versions integrate your entire stereo, surround or immersive speaker configuration into your AoIP infrastructure.
AES67 subwoofer variants offer integrated, redundant AES67 audio network ports, fully compliant with broadcast standards such as ST 2110, ST 2022-7 and RAVENNA. AES67 subwoofers are also compatible with AES67 network streams generated by DANTE®.
Max SPL @ 1 m : 115 dB
Frequency response (± 6 dB) : 16 … 750 Hz
Dimensions (H x W x D) : 737 × 330 × 645 mm

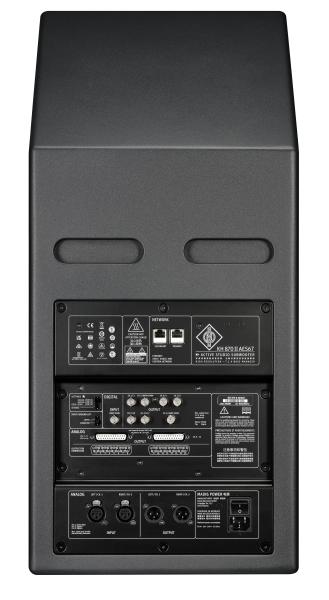

Analog I/O :
In : 2x XLR, 2x SUB-D25
Out : 2x XLR, 2x SUB-D25

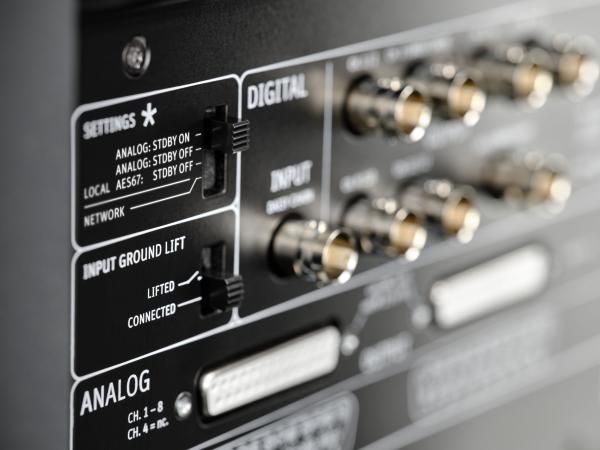

Digital I/O : AES3 (BNC) : 7x Monitor Out, Daisy chain : In/Out

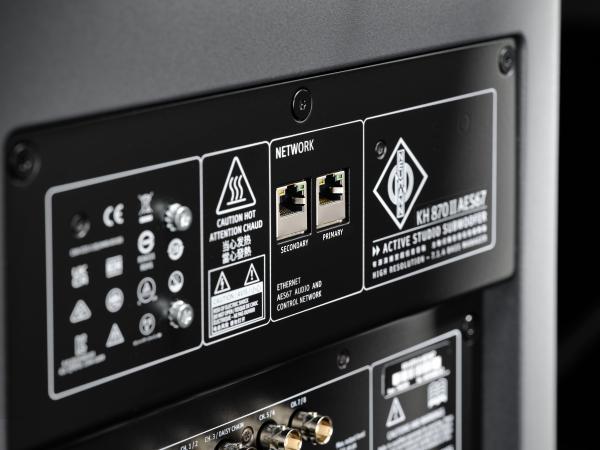

AES67 version : 2x RJ 45, AoIP redundancy, NMOS, ST 2110, no SUB-D In
Euroguitar Referenz : 118526
