Rcf EVOX 12 White
Powerful and Ultra-Efficient Class D Amplification
RCF's Class D amplification guarantees outstanding performance, high energy efficiency, and low weight. EVOX series amplifiers are distinguished by their extremely fast attack, precise transient response, and exceptionally clear sound reproduction.
The amplification module is housed in a robust aluminum chassis that ensures excellent heat dissipation without the need for a fan, while also providing optimal stability during transport. Thanks to their switch-mode power supply (SMPS), EVOX systems deliver maximum power with minimal size and weight.
Speakers Designed for Performance
High Frequencies

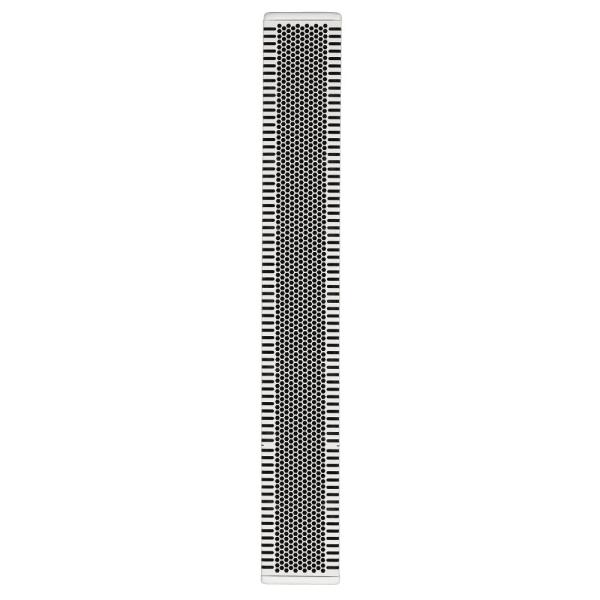

The column incorporates eight ultra-compact 4” full-range drivers capable of handling high sound pressure levels. Their design ensures clear and dynamic reproduction of midrange and treble frequencies.
Low Frequencies

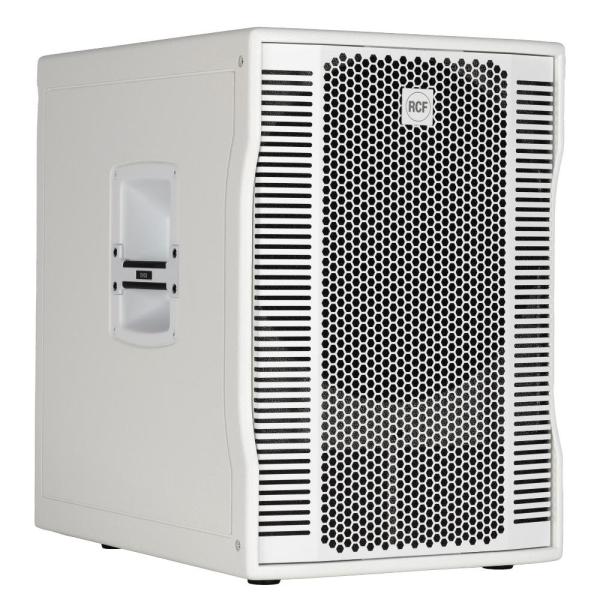

The 15” RCF long-excursion woofer delivers deep, punchy, and perfectly controlled bass. The optimized bass-reflex port minimizes air turbulence and reduces distortion, even at high volumes.
The EVOX 12's vertical array configuration provides wide and even sound coverage (90° x 30°), free of hotspots, with excellent projection for the audience and balanced sound even in the front row.
Quick Setup and Easy Transport
Optimal Portability
The EVOX 12 system is ready to go in just three steps. Designed for portability, it combines all its components – column, subwoofer, pole, and cables – into a compact package compatible with dedicated carrying cases.
Intuitive setup

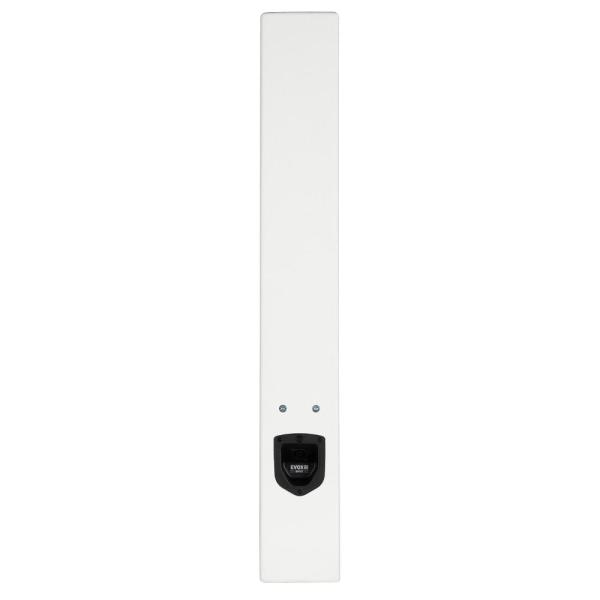

The column head simply attaches to the pole, which is itself screwed onto the subwoofer. The pole is divisible into two sections for easy storage and transport.
Ready to play!
Lightweight, quick to set up, and incredibly powerful: the EVOX 12 lets you set up your audio system in record time.
Exemplary linearity with FiRPHASE technology
RCF speakers incorporate advanced FiRPHASE filtering technology, developed to deliver transparent sound reproduction, exceptional precision, and a perfectly coherent stereo image.
These innovative filters ensure even sound distribution across the entire listening area, without phase distortion, and guarantee minimal latency for a fully controlled audio experience.
Power: 1400 Watts peak / 700 Watts RMS
Max. SPL: 130 dB
Frequency response: 40 - 20,000 Hz
Dispersion angle: 90° x 30°
Soft limiter
XLR input
XLR output
Plywood cabinet
Dimensions (W x D x H): 410 x 560 x 2200 mm
Weight: 36.4 kg
Color: White (RAL 9003)
Euroguitar Referenz : 120001
