Rcf EVOX JMIX8 W
Über das Produkt
The RCF EVOX JMIX8 is a compact, powerful active PA system, featuring a column and subwoofer, as well as an 8-channel digital mixer.
Designed for musicians, DJs, entertainers and live performances, it offers an all-in-one solution that's easy to transport, quick to set up and extremely efficient in sound diffusion.
Thanks to FiRPHASE technology and its advanced DSP, rendering is precise, natural and coherent throughout the listening area. Control is possible directly from the system, or via a mobile app for remote management.
EIGENSCHAFTEN
Acoustics
Woofer: 12" with bass-reflex design
Column: 8 x 2" full-range drivers
Frequency Response: 40 Hz – 20 kHz
Max SPL: 128 dB
Direction: 120° horizontal × 30° vertical
Amplification
Total Power: 1400 W (peak)
Class D amplification
Full DSP management with FiRPHASE technology
Integrated processing: EQ, compressor, effects, presets
Integrated mixer
8 mixing channels
Hi-Z instrument input for guitar/bass
Built-in amp simulators (modeling)
Internal effects (reverb, delay, modulation, etc.)
Remote control via mobile app
Integrated Bluetooth audio player
Connectivity
Mic/Line inputs
Input Hi-Z
Line input/output
Bluetooth audio
Subwoofer/link output depending on configuration
Dimensions & Weight

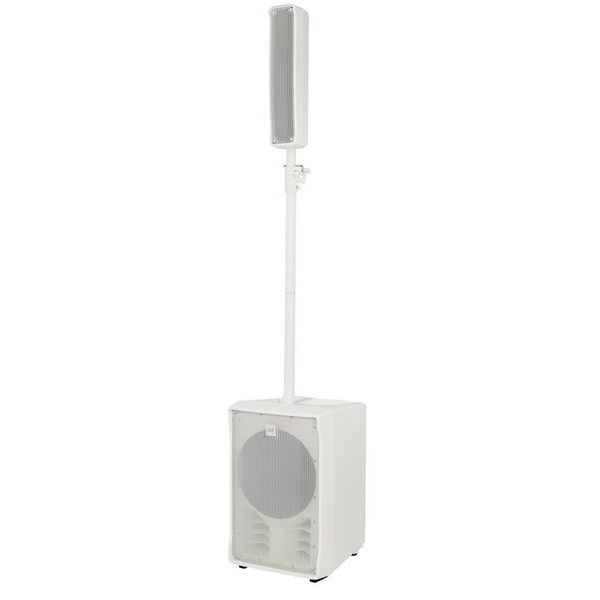

Total height (assembled column): approx. 2.3 m
Subwoofer dimensions: approx. 350 × 450 mm
Weight: approx. 24.4 kg
Transport & Setup

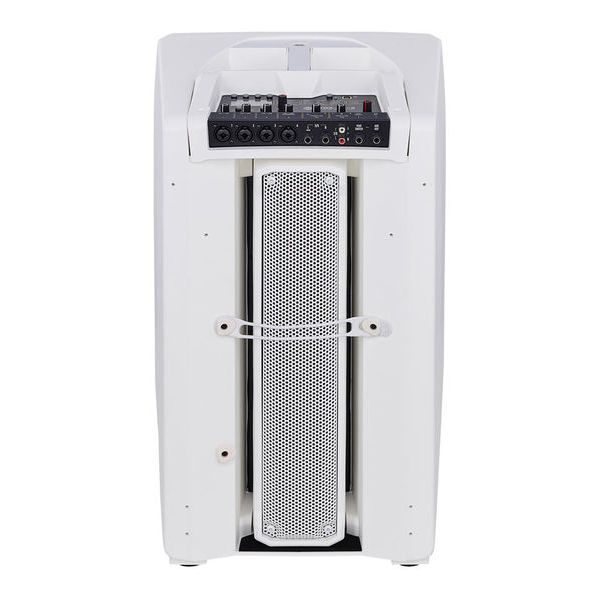

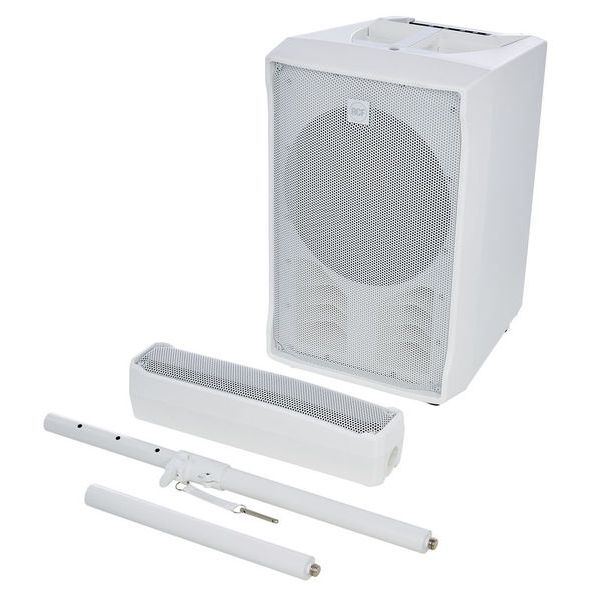

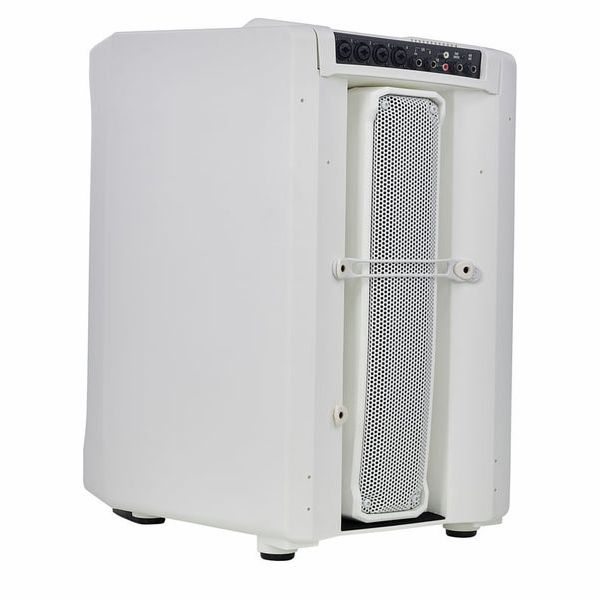

Detachable column that fits inside the subwoofer enclosure
Integrated handles
Very quick setup
Compact size for transport
Advantages
All-in-one system: speaker + subwoofer + mixer + effects
High power and coverage for concerts, DJs, and conferences
Highly coherent sound thanks to advanced DSP
Easy transport, ultra-fast setup
Convenient remote control
Euroguitar Referenz : 120050
