Rcf NX 912-SMA

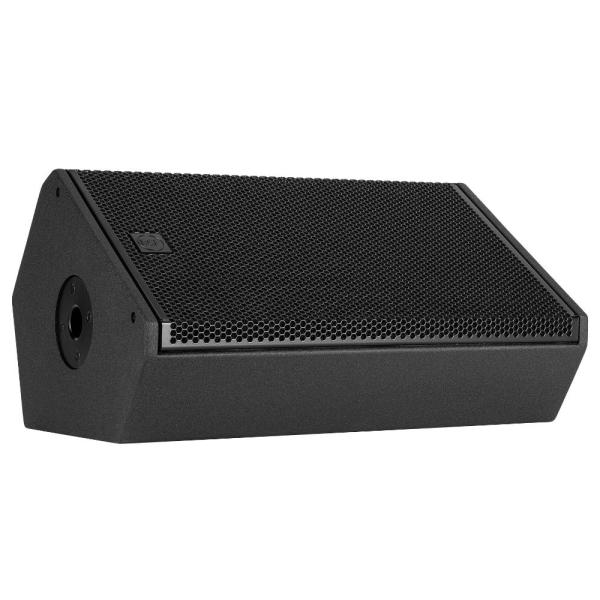

RCF's NX 912-SMA is a professional active stage monitor (which can also be used as a main loudspeaker) designed for musicians, bands, DJs and PA contractors.
It combines a 12" woofer, a 1.75" compression driver, approximately 2,100 W of Class D dual-channel amplification, and a constant directivity waveguide for wide, coherent coverage.
Thanks to proprietary FiRPHASE (zero phase) and Bass Motion Control (woofer excursion management) technologies, it delivers clear, powerful and faithful sound.
The sturdy wooden cabinet and various mounting options make it suitable for both touring and fixed installations.
Key features :

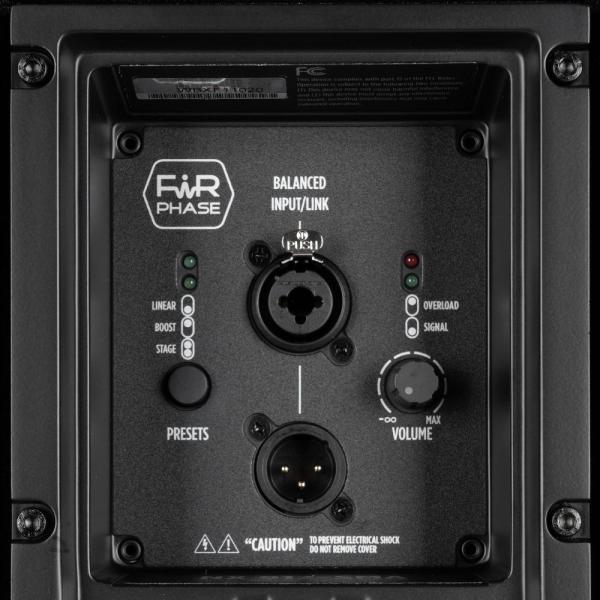

Balanced/unbalanced line input via XLR/Jack combo
Preset menu: "LINEAR" (sound optimized for clarity), "BOOST" (bass/ambient), "STAGE" (return mode)

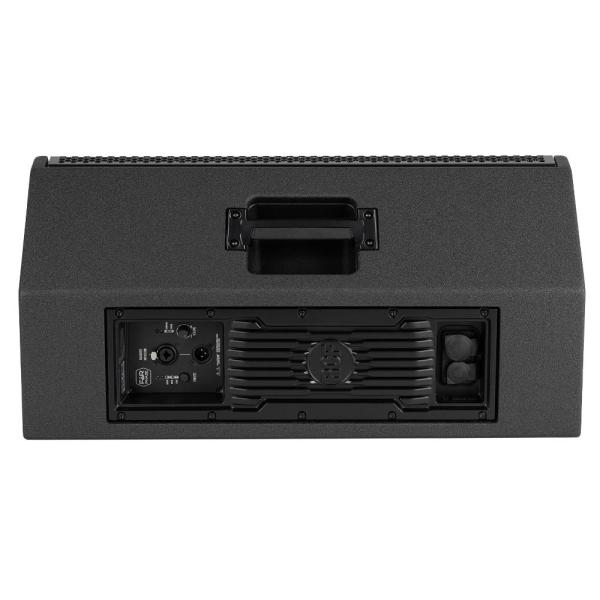

Aluminum rear panel
Convection-cooled amplifier (no fan) mounted on aluminum heat exchanger

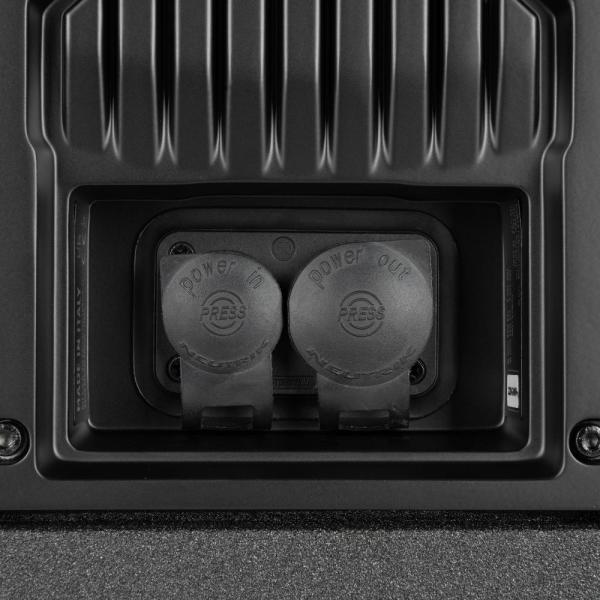

PowerCON TRUE1 TOP IN/OUT power connectors (sealed, turned)

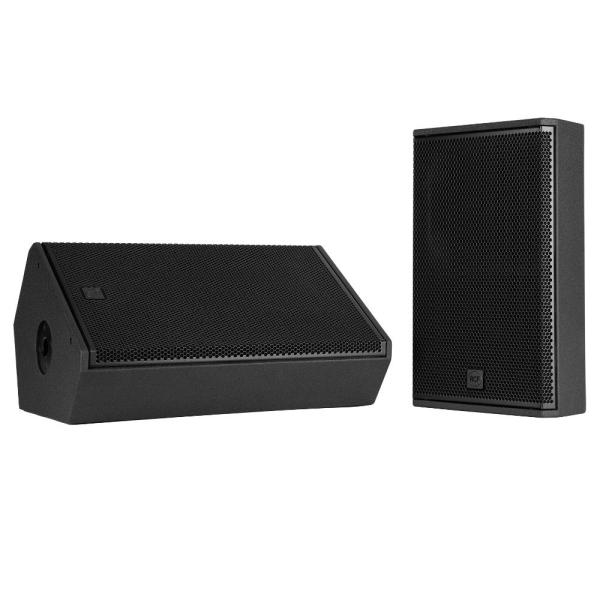

Vertical or horizontal mounting with baseplate on one side and adapted waveguide
FRFR (Full Range Flat Response) can be used to model guitar or bass amps: linearity, zero degree phase response and 2100 W of power provide highly faithful signal reproduction.
Frequency response: 50 Hz – 20 kHz
Maximum SPL: approx. 130 dB
Directivity: 100° × 70°

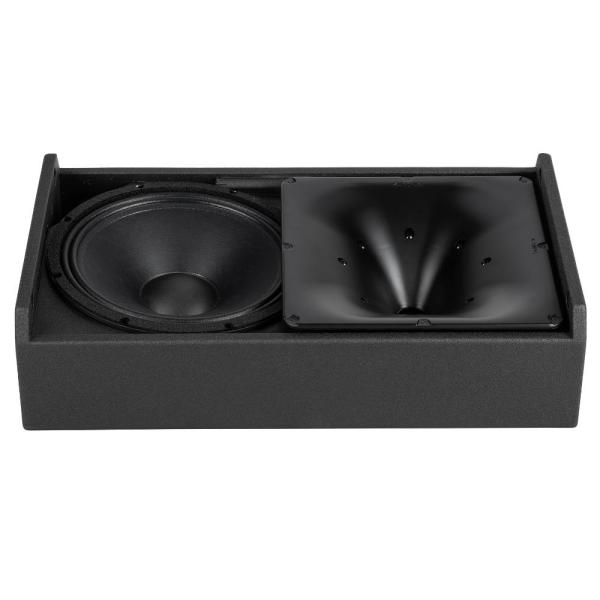

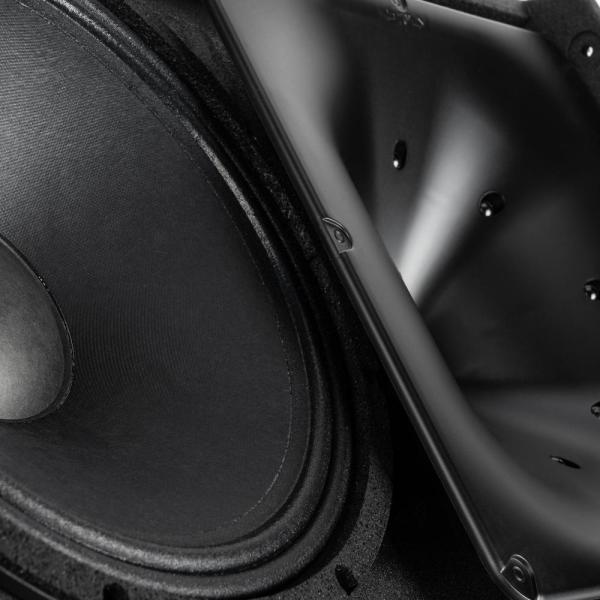

Transducers
Woofer: 12?
HF Driver: 1.75? compression driver
Amplification
Total power: 2100 W (Class D)
Bi-amplification
Integrated DSP with FiRPHASE processing
Bass Motion Control (optimized bass performance)
Internal presets for multiple uses (monitor, front-of-house, etc.)
Connectivity
XLR/Jack combo input
XLR (link) output
PowerCON TRUE1 IN/OUT power supply
Construction and ergonomics
High-strength, multi-ply wood cabinet

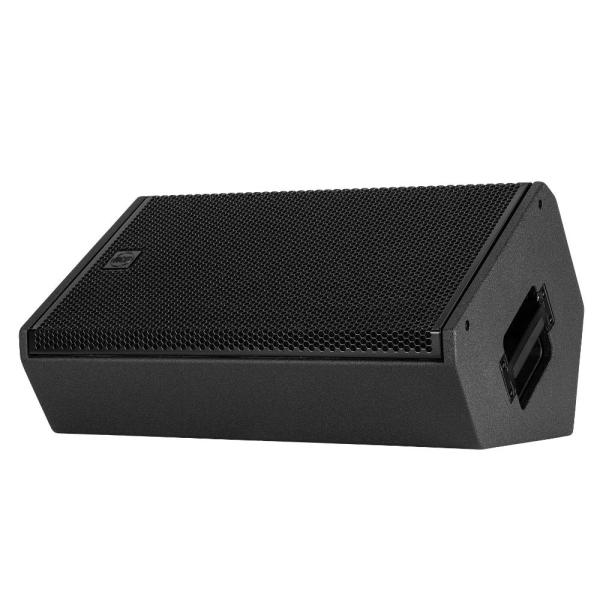

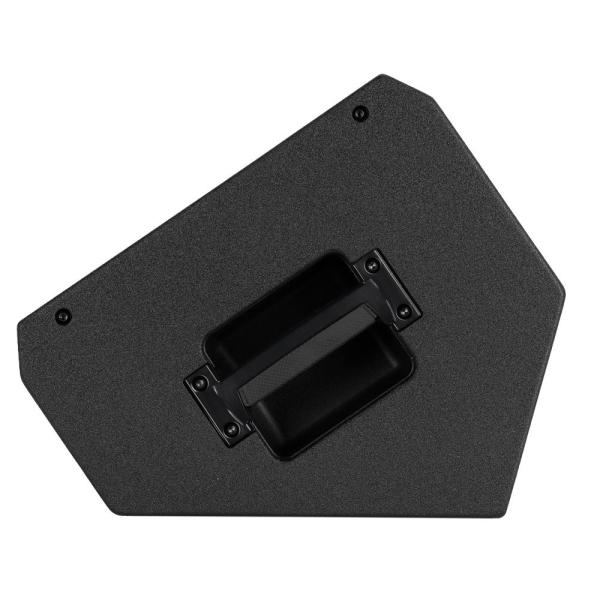

Integrated carrying handles

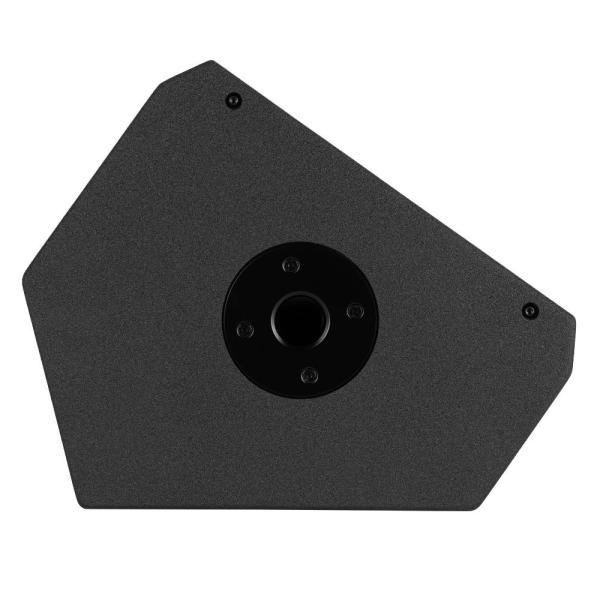

Stand mountable base
Can be used as a monitor or main speaker
Touring-proof design
Dimensions and weight
Dimensions: approximately 620 × 320 × 394 mm
Weight: approximately 20 kg
Euroguitar Referenz : 120051
