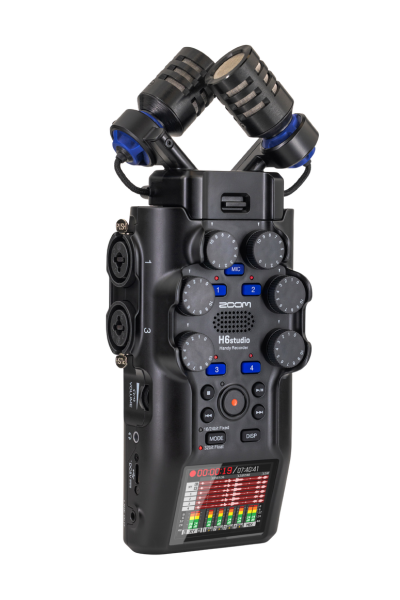

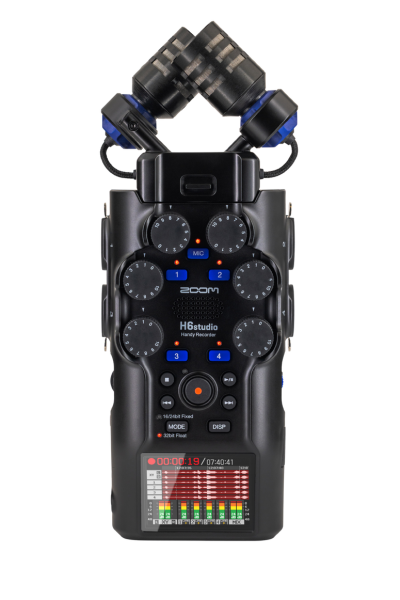

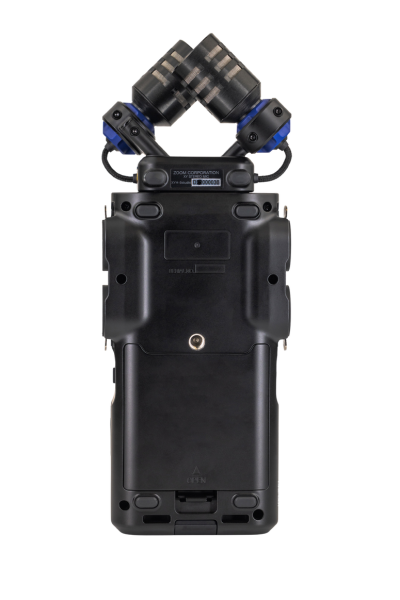

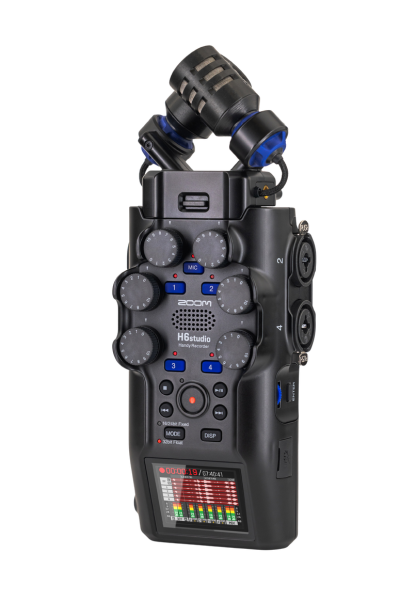

Zoom H6 Studio
Following the enthusiastic reception of the H5studio, ZOOM offers the H6Studio, which offers more inputs for your most ambitious creations. Like its predecessor, it features high-end mic preamps (from the F series and offering -127 dBu of input noise) and a dual A/D conversion stage offering 32-bit floating-point recording, allowing you to record without having to adjust the gain, leaving the editor free to optimize the signal. The H6studio also offers 16/24-bit recording with dedicated gain knobs for each input, and its color LCD screen can display input levels and waveforms in real time to keep your levels under control. Additionally, powerful RF shielding blocks interference from smartphones and Wi-Fi routers to ensure flawless recordings.
The H6studio comes with the XYH-5s capsule, which features two large-diaphragm microphones (19.4 mm) capable of handling up to 140 dB of SPL, capturing a wide, clear sound. It supports the other third-generation SSH-6e and EXH-6e capsules (available separately) to offer maximum recording options. The H6studio records six separate tracks plus a stereo mix with a sample rate of up to 192 kHz. The four locking XLR/TRS combo inputs support +48 V phantom power and +4 dBu line level. The H6studio offers all the necessary outputs for monitoring and connecting to external equipment such as a camera, with a test tone and record start generator.
A host of features are available to make your recordings easier: a mono mode for vocal recording, a low-cut filter, predictive limiters, normalization and export of audio files in 24-bit/16-bit WAV formats, variable speed playback and loop playback. The H6Studio functions as a 6-input / 2-output USB audio interface (Mac, Windows, iOS and Android) while simultaneously recording to SD card. It also features a voice guide for use by the blind and visually impaired. With its connector for the optional BTA-1 Bluetooth adapter, the H6studio offers wireless timecode synchronization as well as control via the ZOOM Handy Control & Sync app for iOS. It runs on 4 AA batteries for up to 15 hours of battery life and can be powered via the USB port supporting the optional AD-17 AC adapter as external portable batteries. The optional accessory kit (APH-6s) includes a padded case, a furry windscreen, an AC adapter, and a USB-C cable.
3.0 Capsule System: Compatible with SSH-6e and EXH-6e (sold separately), comes with the XYH-5e capsule (two 19.4 mm condenser microphones in 90° X/Y configuration, up to 140 dB SPL, sensitivity -41 dB/Pa @1 kHz).
Inputs:
One side-mounted Mic/Line input on a 3.5 mm mini-jack with PiP power for lavalier microphones.

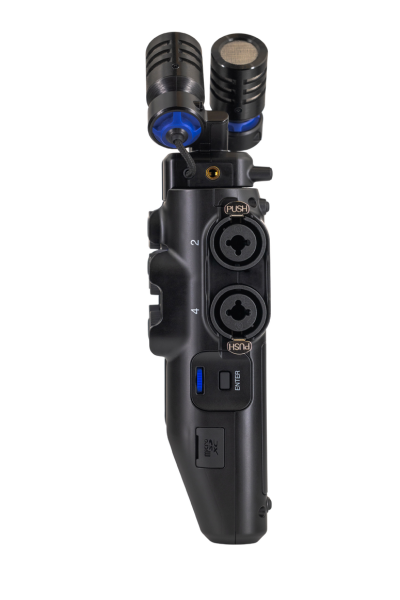

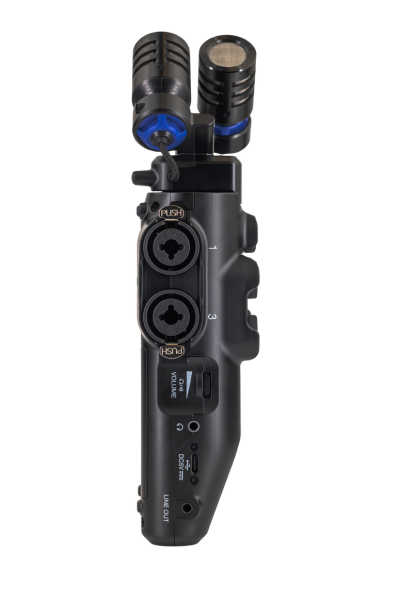

Four combo XLR/6.35 mm Mic/Line inputs with +48V phantom power.
Recording Formats: 32-bit floating point or 16/24-bit WAV @44.1/48/96/192 kHz.
Controls: Six dedicated gain knobs for 16/24-bit modes.
Storage and Display
Recording to microSDHC/microSDXC up to 2TB.
2" LCD screen, French interface + voice guidance for the visually impaired.
Advanced Features
Predictive limiters, mono mode, high-pass filters, normalization, 16/24-bit export.
Variable speed playback (0.5 to 1.5x), loop playback.
Test tone and direct recording start.
Connectivity
Port for BTA-1 or TCA-1 Bluetooth adapter (optional): remote control via iOS + sync.
High Speed ??USB Type-C 2.0 port: compatible with Mac/PC/iOS/Android.
USB Modes: card reader, 2x or 6x input/2 output audio interface (24/32-bit @44.1 or 48 kHz), simultaneous recording to SD card (interface only @96 kHz).
Outputs and Monitoring
Line output + headphone output via 3.5 mm stereo mini-jack.
Built-in monitor speaker (250 mW).
Power and Battery Life

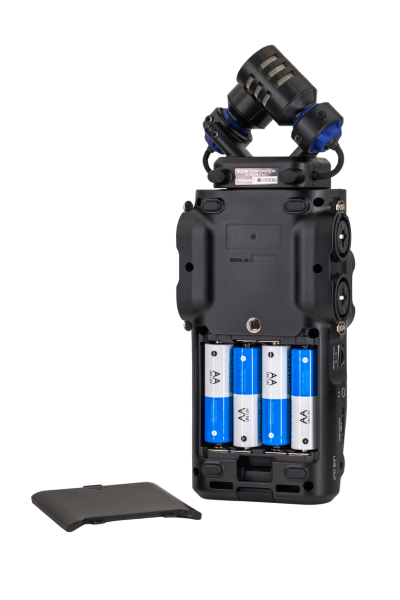

Operates with 4 LR6 (AA) batteries (not included): up to 15 hours of battery life in stereo @48 kHz.
Powered via USB bus or AD-17 AC adapter (optional).
Dimensions and Weight
Dimensions: 83 (W) x 221 (D) x 54.5 (H) mm.
Weight (with batteries): 477 g.
