29 pedals OAMP Output Amplifier Pedal
29 PEDALS OAMP Output Amplifier is an output driver designed to replace a conventional output buffer or gain pedal at the end of your chain. If you’re familiar with EUNA, it’s a similar concept but with a few key differences. High headroom, clean gain, great drive capability. They key features are labelled below. There are subtle tonal variations in the gain settings. Maximum clean output level is 20dB. 29dB of gain available.
OAMP makes enough gain to drive your amp into breakup without adding it’s own distortion, or you can use it to trim hot signals from your pedalboard. The insert loop is active when OAMP is OFF, so you can easily swap from clean drive to a dirt pedal, alternative preamp or anything you want really. With nothing plugged into the insert OAMP is True-Bypass when switched off.
- SKU 29 Pedals OAMP
- Buffer/booster
- Analog circuit
- Maximum clean output level 20dB
- 29dB of gain available

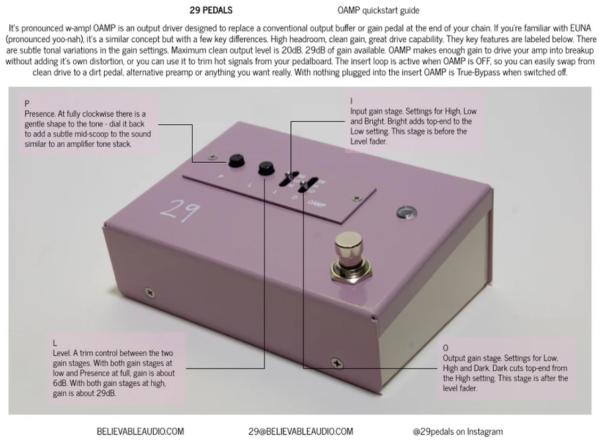

- P - Presence - At fully clockwise there is a gentle shape to the tone - dial it back to add a subtle mid-scoop to the sound similar to an amplifier tone stack
- L - Level - A trim control between the two gain stages. With both gain stages at low and Presence at full, gain is about 6dB. With both gain stages at high, gain is about 29dB
- I - Input gain stage - Settings for High, Low and Bright. Bright adds top-end to the Low setting. This stage is before the Level fader
- O - Output gain stage - Settings for Low, High and Dark. Dark cuts top-end from the High setting. This stage is after the level fader
- True bypass
- Whatever power circuit can handle any optional power supply from 7.5 to 35V - both AC and DC (power consumption 100 mA, doesn't work on batteries)
- Euroguitar Referenz : 114895
