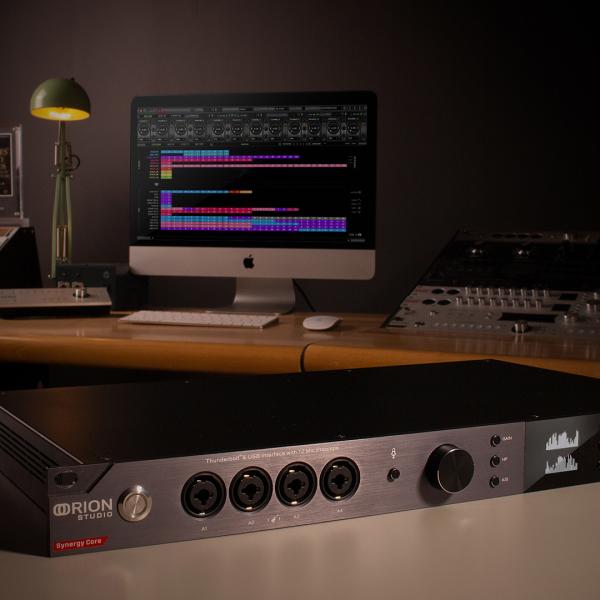

Antelope audio Orion Studio Synergy Core
The new Orion Studio brings our recently pioneered Synergy Core FX processing platform to its next stage of evolution. With two proprietary Field Programmable Gate Aray (FPGA) chips and a whopping six ARM-based DSP processors on board, the sheer computing power contained in this interface is astounding! Leave CPU upgrades aside and let Synergy Core do the number-crunching.
6x DSP + 2x FPGA chips let the Orion Studio Synergy Core handle up to 32 FX channel strips X 8 FX slots each for a maximum of 256 FX instances, at any sample rate and over AFX2DAW. That's four times the processing power of the Orion Studio Rev. 2017.

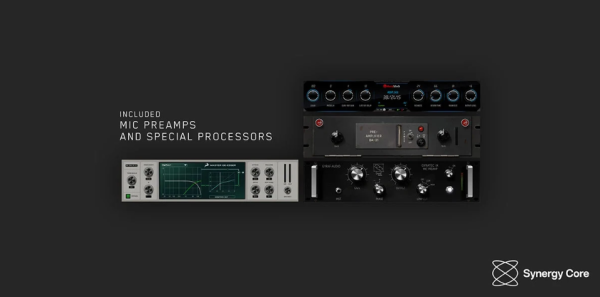

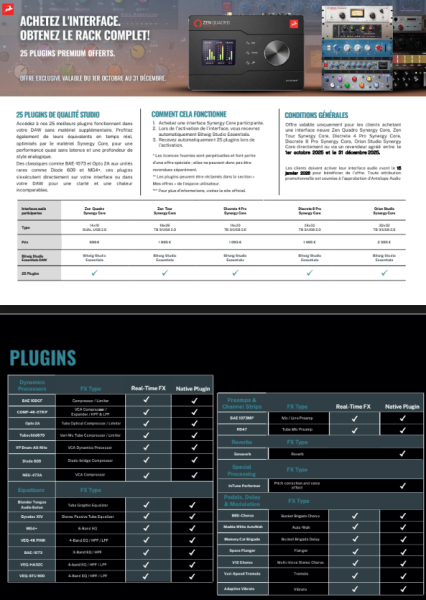

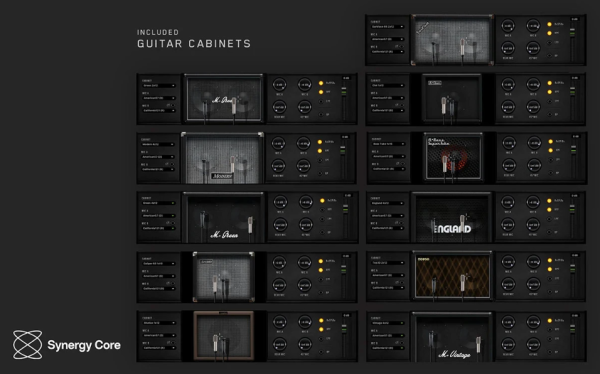

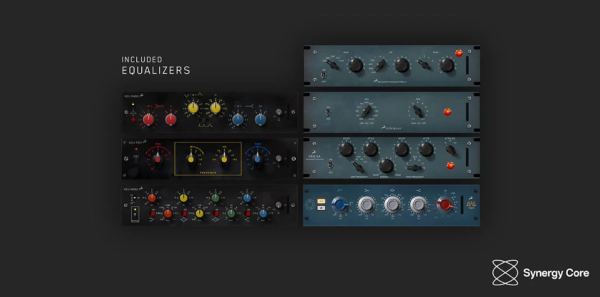

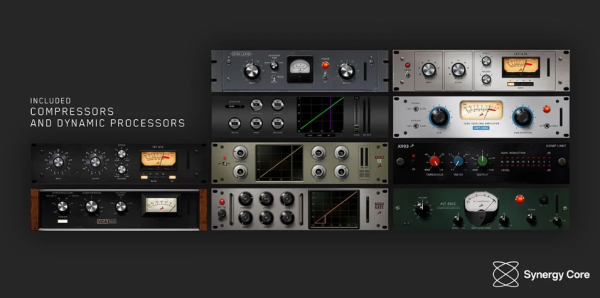

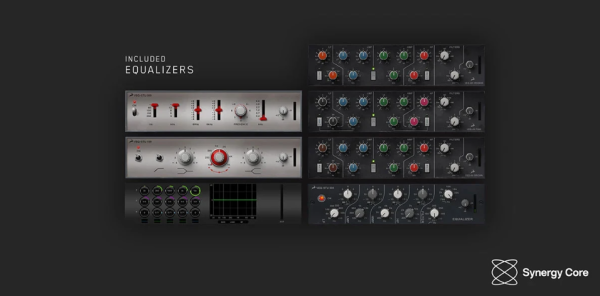

Adding further value to your investment, the ?rion Studio Synergy Core includes a compelling library of 50 real-time studio effects, meticulously modelled after their hardware originals. It’s all happening inside your audio interface with the lowest latency possible thanks to FPGA’s massive parallel computing capabilities, DSP processing, and fast Thunderbolt™ connectivity. The library can be expanded to include any effects you choose from our web store.
The outcome of a long, hard look into iconic microphone preamp circuitry, our discrete transistor pres honor the finest audio engineering practices while sounding absolutely exceptional. They also bring out the best in our Edge & Verge modeling condenser microphones, for vocal and instrument recording that truly keeps up with the times.
There’s no task too big or too small for the Orion Studio Synergy Core. Record high-impedance instruments, such as the electric guitar, through four Hi-Z inputs and reamp DI tracks through the special purpose ReAmp outputs. Take advantage of all 16 line outputs (on DB25 connectors). Handle digital audio via S/PDIF and ADAT. Freely route all incoming and outgoing audio from an intuitive software Routing Matrix. Then hear the result from two pairs of headphones or studio monitors – simultaneously, if you need to.
- Plateforme de traitement Synergy Core avec 2 FPGA + 6 DSP
- 2 paires de sorties monitoring utilisables en même temps ou en mode alterné A/B avec 130 dB de plage dynamique
- 30 entrées x 22 sorties simultanées
- Entrées/Sorties à couplage de courant continu pour le contrôle CV des synthés analogiques modulaires
- Assemblé à la main en Europe pour devenir la pièce centrale de votre studio pour les années à venir
Analog Inputs
- 8 x Mic / Line Inputs / Direct In
- 4 x Mic / Line / Hi-Z Inputs / Direct In
Analog Inserts
- 2 x Inserts on TRS (inputs 1,2)
Analog Outputs
- 2 x Monitor Out on TRS 1/4 Jacks: Can work both simultaneously and in A/B mode
- 2 x ReAmp Out on TRS 1/4 Jacks
- 2 x Line Out (16 channels) on DB25, +20 dBu max, impedance balanced
- 2 x Stereo Headphone Outputs
D/A Monitor Converter
- Dynamic Range: 130 dB
- THD + N: -115 dB
A/D Converter
- Dynamic Range: 124 dB
- THD + N: -112 dB
D/A Converter
- Dynamic Range: 128 dB
- THD + N: -115dB
Discrete Mic Preamps
- EIN: -128 dBu
- Dynamic Range: -121 dB
- THD: -106 dB
- Max input: +20 dBu
- Max Gain: 75 dB
DIGITAL
Digital Inputs
- 2 x ADAT (up to 16CH)
- 1 x S/PDIF on RCA
Digital Outputs
- 2 x ADAT (up to 16CH)
- 1 x S/PDIF on RCA
- USB 2.0 Hi-Speed
- USB 2.0 Type B connector
- (up to 24 channels)
- Thunderbolt™ 3 I/O
- Thunderbolt™ 3 connector
(up to 32 channels)
CLOCKING
Word Clock Input
- 1 × Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Word Clock Outputs
- 1 × Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Clocking System
- 4th Generation Acoustically Focused Clocking
64-bit DDS
- Oven-controlled crystal oscillator
Clocking Stability
- <+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF
Clock Aging
- < 1 ppm per year
Clock Calibration
- <+/-0.001 ppm
Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
- Euroguitar Referenz : 91604
