Austrian audio OC18 Dual Set Plus
Über das Produkt
The Austrian Audio OC18 Dual Set Plus is a complete stereo set of large-diaphragm condenser microphones, designed for studio, live and broadcast applications requiring precise, consistent sound reproduction.
It's a matched pair of OC18 microphones handcrafted in Vienna, offering extended frequency response and faithful reproduction of vocals and instruments.
Each microphone uses a high-quality CKR12 ceramic capsule, ensuring transparent sound and low distortion even at high sound pressure levels.
The kit comes complete with a full set of accessories - shockmounts, windscreens, clamps, stereo bar and carrying case - for a ready-to-use stereo setup that's easy to move around.
EIGENSCHAFTEN
Product Type
Stereo set of large-diaphragm condenser microphones, matched pair.
Directional Pattern and Acoustics
Directional Pattern: Cardioid (fixed on both microphones, ideal for stereo recording and source isolation).
Capsule: Hand-crafted ceramic CKR12 for exceptional clarity and precision.
Frequency Response: 20 Hz – 20 kHz, suitable for a wide range of audio applications.
Settings and Controls
Switchable low-cut filters: 40 Hz, 80 Hz, and 160 Hz to reduce unwanted low frequencies.
Analog Pads: -10 dB and -20 dB for distortion-free capture of high SPL sources.
Technical Specifications
Sensitivity: ~13 mV/Pa.
Very low equivalent noise: ~9 dB SPL(A), for a clean signal.
Max SPL: 148 dB, up to 158 dB with the pad engaged.
Output impedance: ~275 Ω (balanced).
Requires +48 V phantom power (studio standard).
Connectivity
Connector: Balanced 3-pin XLR for optimal signal-to-noise ratio.

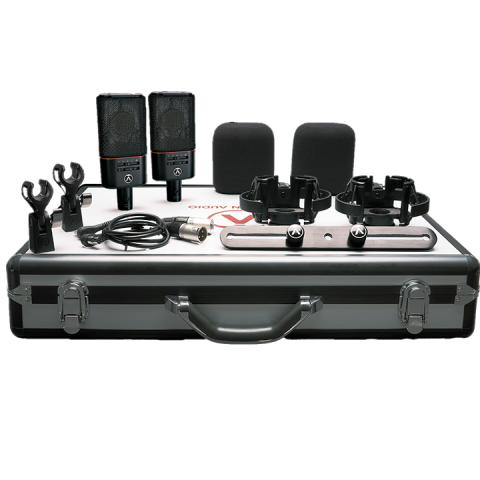

Dual Set Plus Kit Contents
2 x Matched OC18 microphones.
2 x OCS8 shock mounts.
2 x OCW8 windscreens.
2 x OCH8 microphone clips.
1 x SB1 stereo coupling bar for optimal microphone spacing.
1 x Heavy-duty carrying case for easy storage and transport.
Euroguitar Referenz : 121795
