Austrian audio OC7
Über das Produkt

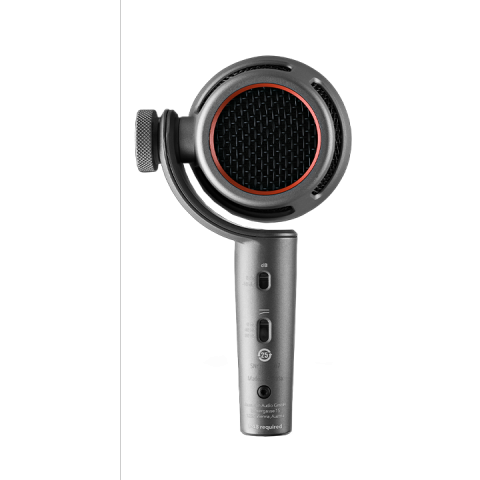

The Austrian Audio OC7 is a true condenser instrumental microphone designed for close miking of instruments, percussion, drums, and amplifiers.
It features an Austrian Audio-developed OCC7 capsule, inspired by the legendary CK1 capsule, offering an extended frequency response and excellent SPL handling.
The design includes an innovative 220° swivel ball head for precise positioning in tight spaces.
The robust metal housing ensures durability suitable for intensive studio or live use.
EIGENSCHAFTEN
Transducer and Directivity
Type: Small-diaphragm condenser
Directivity: Cardioid
Capsule: Specially developed OCC7
Frequency Response: 20 Hz – 20 kHz
Audio Performance
Sensitivity: 10 mV/Pa
Equivalent Noise Level: 19 dB SPL (A-weighted)
Maximum Sound Pressure Level 154 dB SPL (>160 dB with pad)
Filters and Options
Switchable low-cut filter: 40 Hz (2nd order) or 80 Hz (2nd order)
Switchable pad: -10 dB
Electronics and Connections
Impedance: 275 Ω balanced
Power Supply: 48 V Phantom Power (< 2 mA)
Connector: 3-pin XLR
Physical Specifications
Dimensions: 147 × 82 × 54 mm
Weight: 275 g
Construction: Robust metal housing with articulated swivel mechanism
Color and Finish: Professional look designed for heavy-duty use
Included Accessories
Compatible microphone stand
Carrying case or protective case
(depending on the retailer)
Euroguitar Referenz : 121790
Type: Small-diaphragm condenser
Directivity: Cardioid
Capsule: Specially developed OCC7
Frequency Response: 20 Hz – 20 kHz
Audio Performance
Sensitivity: 10 mV/Pa
Equivalent Noise Level: 19 dB SPL (A-weighted)
Maximum Sound Pressure Level 154 dB SPL (>160 dB with pad)
Filters and Options
Switchable low-cut filter: 40 Hz (2nd order) or 80 Hz (2nd order)
Switchable pad: -10 dB
Electronics and Connections
Impedance: 275 Ω balanced
Power Supply: 48 V Phantom Power (< 2 mA)
Connector: 3-pin XLR
Physical Specifications
Dimensions: 147 × 82 × 54 mm
Weight: 275 g
Construction: Robust metal housing with articulated swivel mechanism
Color and Finish: Professional look designed for heavy-duty use
Included Accessories
Compatible microphone stand
Carrying case or protective case
(depending on the retailer)
Euroguitar Referenz : 121790
