Austrian audio OD 5
The Austrian Audio OD5 is a dynamic instrumental microphone with active technology designed to deliver robust sound quality and excellent stability, whether in the studio or on stage.
It combines an ODC50 capsule and active dynamic circuitry, optimized to deliver focused, noise-free sound with high dynamic reserve and resistance to high sound pressure levels.

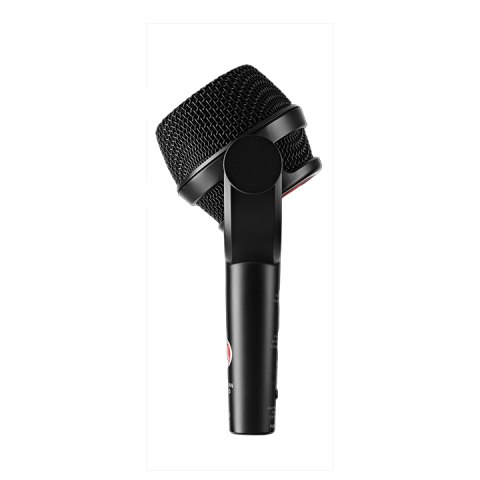

Its swivel head can be rotated up to 220° for precise positioning in tight spaces, while the sturdy metal construction guarantees durability for intensive use. Handcrafted in Vienna, it's a versatile tool for instrument recording.
Highlights
Active dynamic technology for clean transmission even with long cables
Precise positioning thanks to 220° swivel head
Good resistance to high sound pressure levels
Robust construction for professional environments
Balanced sound response for a variety of instruments
Type: Active Dynamic
Directivity: Cardioid
Capsule: ODC50
Frequency Response: 20 Hz – 18 kHz
Audio Performance
Sensitivity: 6.7 mV/Pa
Equivalent SPL: 21 dB SPL (A)
Maximum SPL: 151 dB SPL (> 160 dB SPL with pad)
Filters and Options
Switchable High-Pass Filter: 80 Hz or 120 Hz (2nd order)
Switchable Pad: -10 dB
Electronics and Connections
Impedance: 275 Ω balanced
Power Supply: 48 V phantom power required
Connector: 3-pin XLR
Physical Specifications
Dimensions: 147 × 82 × 54 mm
Weight: 265 g g
Construction: Robust metal housing with 220° swivel head
Color: Black
Included accessories
Microphone clip
Carrying case
(depending on retailer)
