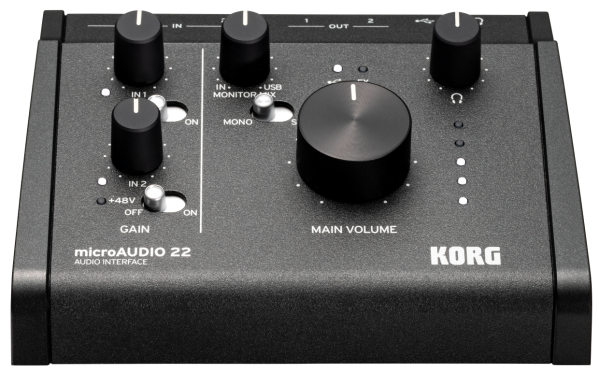

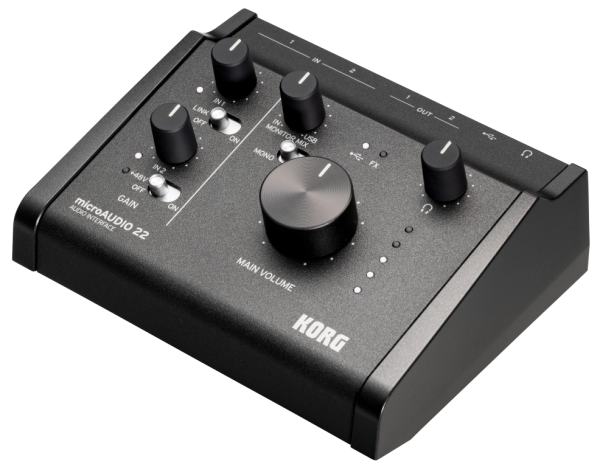

Korg Microaudio 22
Compact, elegant, and intuitive, the KORG microAUDIO 22 is an audio interface designed to get straight to the point. It delivers a clear, open, and dynamic sound, true to KORG's audio expertise, in a format perfectly suited for home studios, streaming, and mobile creation.
Ideal for discerning beginners, amateur musicians, and content creators, the microAUDIO 22 combines studio-quality preamps, high-resolution conversion, and a streamlined workflow. Every nuance is captured with precision, whether for vocals, guitars, synthesizers, or live performances.
With its Mic/Line/Hi-Z inputs, latency-free direct monitoring, built-in processing tools (Noise Gate, Compressor, Limiter), and loopback mode, it's equally suited to music recording, streaming, and podcasting.
Powered by USB-C and compatible with PCs, Macs, smartphones and tablets, the microAUDIO 22 is a reliable and high-performance solution for creating anywhere, simply.
Resolution: 24-bit
Sampling Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Microphone Inputs
Dynamic Range: 109.5 dB (A-weighted)
THD+N: < 0.015%
Max Input Level: -2 dBu
Gain Range: 56 dB
Impedance: 1.5 kΩ
Line / Hi-Z Inputs
Dynamic Range: 109.5 dB (A-weighted)
THD+N: < 0.004%
Max Input Level: 13 dBu / 18 dBu (SE / DIF)
Gain Range: 56 dB
Impedance: 1 MΩ / 2 MΩ (SE / DIF)
Outputs Line
Dynamic Range: 109.5 dB (A-weighted)
THD+N: < 0.0015%
Max Output Level: 10 dBu / 16 dBu
Impedance: 330 Ω / 660 Ω (SE / DIF)
Headphone Output
Dynamic Range: 107 dB (A-weighted)
Max Output Level: 10 dBu
Impedance: 20 Ω

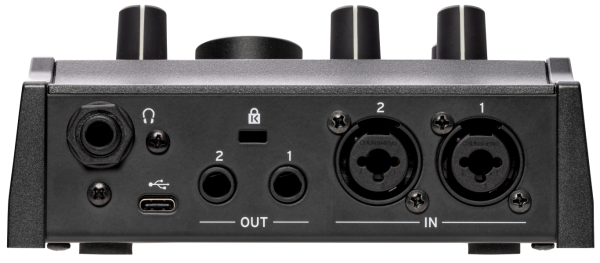

Connections
2 × XLR / 6.35 mm TRS Combo Inputs
2 × 6.35 mm TRS Outputs
1 × 6.35 mm Headphone Output
1 × USB-C Port
General Specifications
Simultaneous Inputs/Outputs: 2 × 2
Mic Preamps: 2
48V Phantom Power: Yes
Direct monitoring: Yes
Loopback mode: Yes
Power supply: USB-C (USB bus)
Dimensions & weight
Dimensions: 150 × 128 × 68 mm
Weight: 407 g
Included software
KORG Software Bundle
Ableton Live Lite
iZotope Ozone Elements
Filter Ark
Box contents
USB cable
Quick start guide
Euroguitar Referenz : 120852
