Über das Produkt



The WA-C1 Mod Chorus Vibrato is a pedal that redefines analog chorus, establishing itself as an indispensable tool for guitarists seeking a wide range of sonic nuances and textures.


Overview



The WA-C1 Mod Chorus Vibrato reimagines one of the most iconic analog chorus pedals in guitar history, offering an enhanced sonic experience while remaining true to the original. This fully analog pedal is designed to deliver rich, dynamic tones thanks to its preamp, renowned for its tonal character and responsiveness.


Controls for Advanced Sound Customization



The WA-C1 Mod features independent controls for adjusting the depth and speed of the chorus. These settings allow musicians to explore a wide range of modulated textures, bringing unique and personalized sounds to life.


Compatibility with Various Instruments for Greater Flexibility

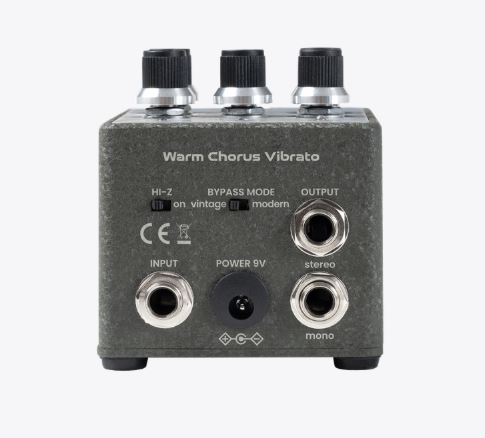

The Hi-Z switch located on the back of the pedal allows it to be used with guitars, basses, and even keyboards, while preserving the tonal clarity of each instrument. This design choice ensures easy adaptation to different musical styles and instrumental setups.


Compact design for optimal integration



With its compact size and top-mounted connectors, the WA-C1 Mod fits easily into any modern pedalboard, allowing for a neat and practical layout of various effects.


EIGENSCHAFTEN


General Information

Type: 100% analog stereo chorus and vibrato pedal



Controls

Input sensitivity selector: Hi/Low
Input Level
Chorus Depth and Rate
Vibrato Depth and Rate
Hi-Z switch on the rear panel
Preamp section bypass switch: Bypass mode (vintage / modern)
Dual-function footswitch: On/Off, toggles between chorus and vibrato effects



Circuits

Operational amplifiers: 3x Texas Instruments
Discrete transistors: 11
FETs: 3
Diodes: 19
MOSFETs: 2
Chip: High-quality Xvive MN3007 BBD



Electrical performance

Power consumption: 800 mW; 200 mA at 9 V
Internal operation replicates that of a vintage pedal thanks to a dual DC-DC voltage converter
Input sensitivity: 80 mV / 10 mV
Output level: 315 mV



Connections

Input: 6.35mm jack
Output: Stereo via 2x 6.35mm jacks on the rear panel



Dimensions & Weight

Dimensions (W x D x H): 115 x 70 x 60 mm
Weight: 500 g



Euroguitar Referenz : 124879
