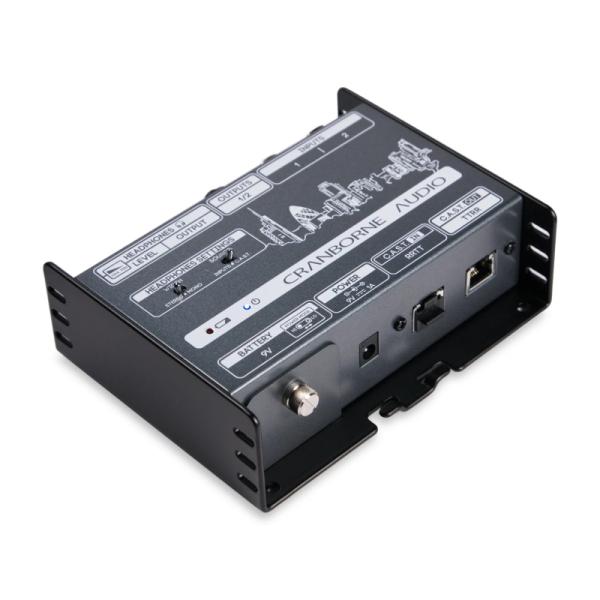

Cranborne N22H
Über das Produkt
The Cranborne Audio N22H is a reference-quality headphone amplifier designed to deliver the full potential of even the most demanding headphones. It replaces the often-limited built-in amplifiers found in audio interfaces and delivers exceptional power and audio precision, regardless of the impedance or sensitivity of the headphones being used.
In addition to its advanced technical performance, the N22H incorporates C.A.S.T. technology, enabling simplified audio cabling via Cat 5e, 6, or 7 network cables over distances of up to 100 meters. It can be powered by either mains power or a 9V battery, making it ideal for both fixed installations and mobile use.
EIGENSCHAFTEN
Device Type
High-performance headphone amplifier with CAST connectivity
Standalone, portable, or installable unit
Audio Performance
THD+N: <0.0009% (-100.4 dB) at +6 dBu, 1 kHz, A-weighted, 100 kΩ load
Frequency Response: 1 dB from <0.8 Hz to >200 kHz
Output Impedance: 0.33 ohms
Output Power (1 kHz)
252 mW x 2 @ 600 ohms
502 mW x 2 @ 220 ohms
950 mW x 2 @ 100 ohms
470 mW x 2 @ 32 ohms
Operating Modes
High Power Mode: For high-impedance, open-back, over-ear headphones, mastering
Low Power Mode: For low-impedance, in-ear or closed-back headphones, recording
Connections
2 inputs Balanced combo jacks
2 balanced XLR and 1/4" jack outputs
Power supply
9V battery compatible (up to 10 hours on low power, 2 hours on high power)
9V DC power supply included (center negative, 1000 mA recommended)
Compatible with effect pedal adapters
C.A.S.T. Connectivity
C.A.S.T. IN (RRTT) port: from an N22 or other compatible source
C.A.S.T. OUT (TTRR) port: to a 500R8, 500ADAT, or other C.A.S.T. device
Transmission via Cat 5e, 6, or 7 cable up to 100 meters
Physical Design
Robust metal housing
Non-slip rubber feet
3/8" thread for microphone stand mounting
Cable tie holes
Mounting holes for permanent installation
Euroguitar Referenz : 116770
