Cranborne N8
Über das Produkt

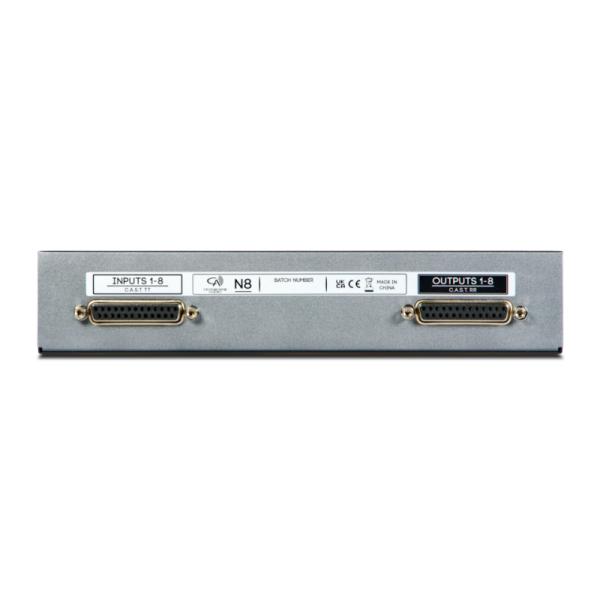

The Cranborne Audio N8 is an analog audio distribution hub utilizing proprietary C.A.S.T. (Cat 5 Analogue Snake Transport) technology. It radically simplifies the audio infrastructure of a studio or live environment by replacing up to four XLR cables with a single Cat 5e, Cat 6, or Cat 7 network cable.
With its standard DB25 connections and four C.A.S.T. ports, the N8 acts as the heart of a modular audio network, capable of distributing up to 16 analog audio channels with consistent sound quality and plug-and-play installation.
This system is ideal for both fixed and mobile installations and is compatible with any audio interface or mixing console via DB25.
EIGENSCHAFTEN
Device Type
Analog Audio Distribution Hub via Network Cabling (CAST)
Connectivity
8 analog inputs via DB25 connector
8 analog outputs via DB25 connector
4 RJ45 CAST ports (1 port per compatible box, i.e., 4 channels per port)
CAST Technology
Analog transmission of 4 audio channels via network cable (Cat 5e, 6, or 7)
Transmission distance up to 100 meters
Single cable replaces:
2 XLR microphones
2 XLR headphone returns
Dedicated headphone power supply
Compatibility
Audio interfaces, consoles, and analog equipment via DB25
CAST distribution boxes Like the N22 and N22H
Typical Uses
In studio control rooms or on stage
Centralized and simplified cabling
Vocal booth or musician's station with monitoring and recording
Main Benefits
Drastically reduced cabling
Quick and clean installation
No dedicated power supply required on CAST boxes
Ideal for modular studios or mobile configurations
Euroguitar Referenz : 116768
Analog Audio Distribution Hub via Network Cabling (CAST)
Connectivity
8 analog inputs via DB25 connector
8 analog outputs via DB25 connector
4 RJ45 CAST ports (1 port per compatible box, i.e., 4 channels per port)
CAST Technology
Analog transmission of 4 audio channels via network cable (Cat 5e, 6, or 7)
Transmission distance up to 100 meters
Single cable replaces:
2 XLR microphones
2 XLR headphone returns
Dedicated headphone power supply
Compatibility
Audio interfaces, consoles, and analog equipment via DB25
CAST distribution boxes Like the N22 and N22H
Typical Uses
In studio control rooms or on stage
Centralized and simplified cabling
Vocal booth or musician's station with monitoring and recording
Main Benefits
Drastically reduced cabling
Quick and clean installation
No dedicated power supply required on CAST boxes
Ideal for modular studios or mobile configurations
Euroguitar Referenz : 116768
