Warm audio WA-WL LIFTER
Über das Produkt

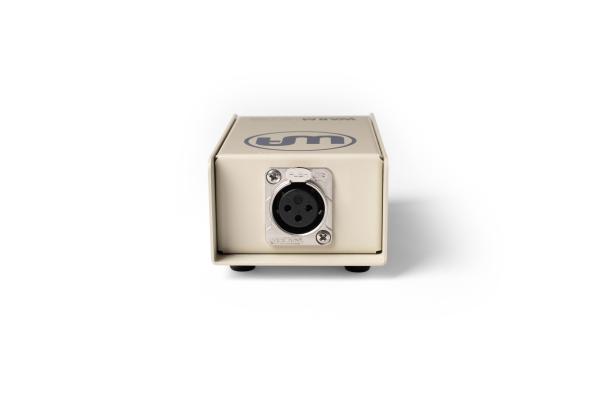

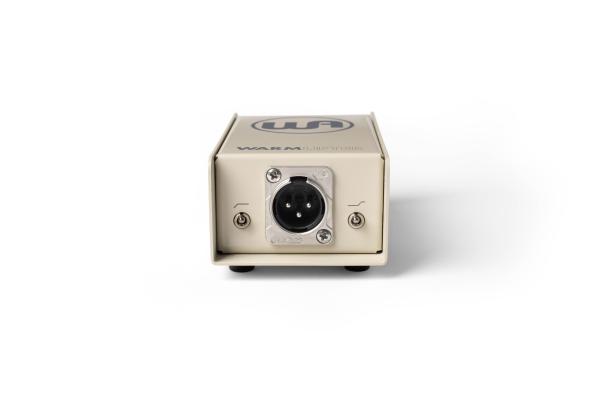

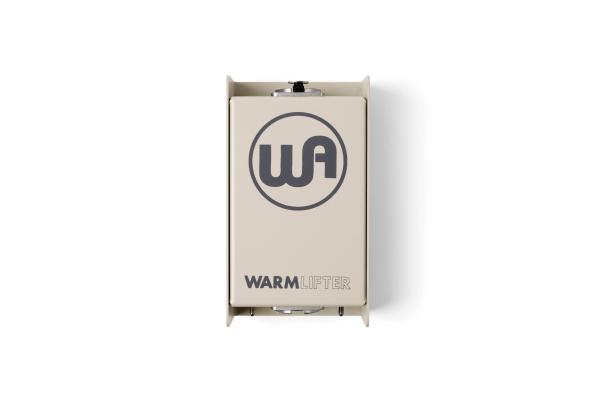

Warm Audio's WA-WL LIFTER is an active in-line microphone preamp designed to provide powerful, clean gain for dynamic and ribbon microphones at low output levels.
EIGENSCHAFTEN
Very low noise JFET input
Symbalanced signal path (input/output)
26 dB gain
Switchable 100 Hz (12 dB) high-pass filter
Switchable 3 kHz (2.5 dB) boost
Input impedance: 2.4 kΩ
Output impedance: 150 Ω
Max. input: -11 dBu (218 mV rms)
Max. output: 15 dBu (4.36 V rms)
THD+N at 15 dBu: -100 dB (0.001%)
Output noise: 7.75 µV (A-weighted), at a 150 Ω input
Frequency response: 10–100,000 Hz (+/- 0.2 dB)
Requires 48 V phantom power with a current consumption of 4.7 A my
Dimensions: 69 x41 x119 mm
Weight: 0.34kg
Euroguitar Referenz : 121555
Symbalanced signal path (input/output)
26 dB gain
Switchable 100 Hz (12 dB) high-pass filter
Switchable 3 kHz (2.5 dB) boost
Input impedance: 2.4 kΩ
Output impedance: 150 Ω
Max. input: -11 dBu (218 mV rms)
Max. output: 15 dBu (4.36 V rms)
THD+N at 15 dBu: -100 dB (0.001%)
Output noise: 7.75 µV (A-weighted), at a 150 Ω input
Frequency response: 10–100,000 Hz (+/- 0.2 dB)
Requires 48 V phantom power with a current consumption of 4.7 A my
Dimensions: 69 x41 x119 mm
Weight: 0.34kg
Euroguitar Referenz : 121555
