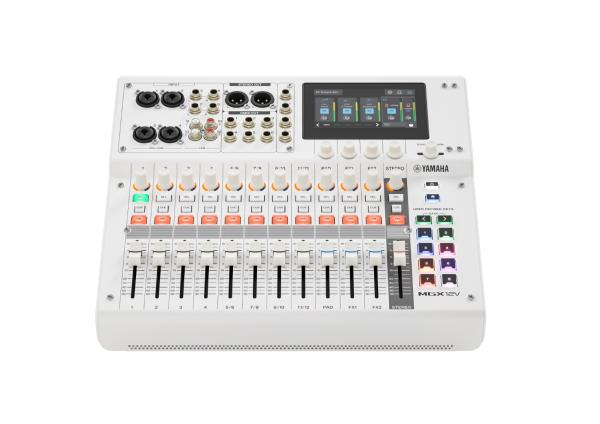

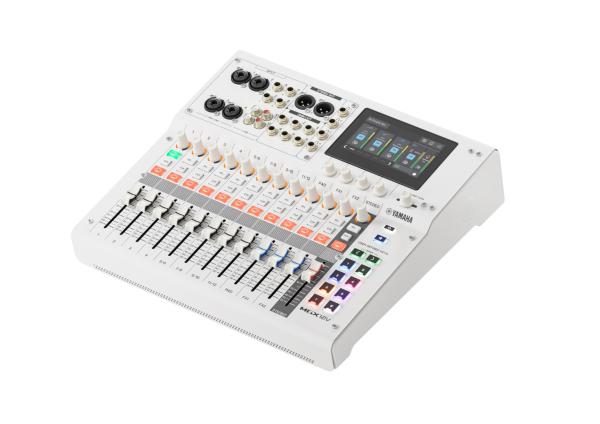

Yamaha MGX12V White
The Yamaha MGX12V is a compact digital mixing console designed for modern audio and video applications. A direct descendant of Yamaha's historic MG series, it combines professional sound quality, advanced digital processing and video integration to meet the needs of live, streaming, podcasting, content creation and audiovisual installations.
Equipped with high-end mic preamps offering a wide gain range and extremely faithful reproduction, the MGX12V captures every nuance with precision. Its color touchscreen, combined with physical faders, customizable encoders and clear ergonomics, ensures fast, intuitive control, even in intensive production situations.
The V version features an HDMI-USB A/V interface, ideal for video workflows, while retaining a wide range of built-in audio processing, assignable Sound Pad and Bluetooth connectivity, making the MGX12V a true all-in-one audio-video control center.
4 Combo Mic / Line inputs
4 mono channels
4 stereo channels
1 dedicated Sound Pad channel
2 integrated effects channels
Bus & Mix
Digital mixing console
8 MIX busses
1 STEREO bus
60 mm faders for precise adjustment
Audio quality
Microphone preamps with up to 86 dB gain
Extremely low distortion
125 dB dynamic range on stereo output
Processing & Features
Gate, Compressor, EQ
Reverb, Amp Simulator, Voice Changer
Auto Gain and Clip Safe
Total FX: Ducker and multiband compressor
Delay function for lip-synchronization
Scene Recall
Simple mode for easy handling
Connectivity & Recording

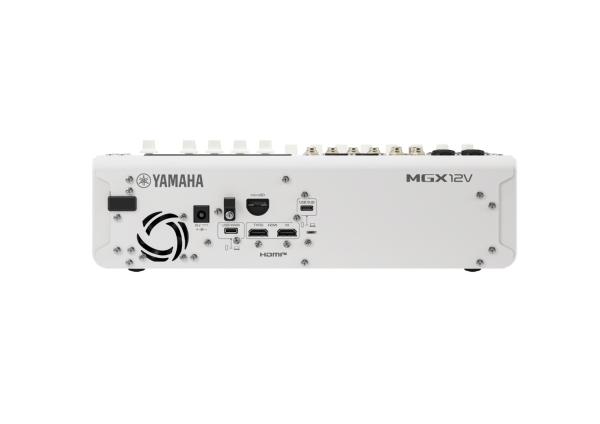

HDMI-USB audio & video interface
Recording / playback of up to 18 tracks
Multi-track recording on microSD card
Bluetooth audio input
Dual USB ports (MAIN / SUB)
Control & Ergonomics

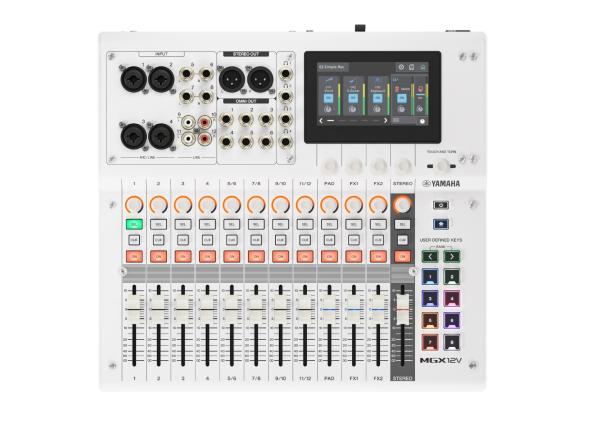

Color LCD touchscreen
4 customizable rotary encoders
Touch & Turn control
8 assignable pads (effects, samples, shortcuts, controls)
Format & Design
Finish: White
Dimensions: 335 × 96 × 319 mm
Weight: approx. 4.1 kg
