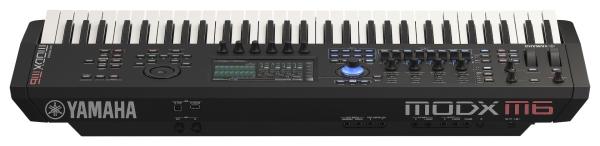

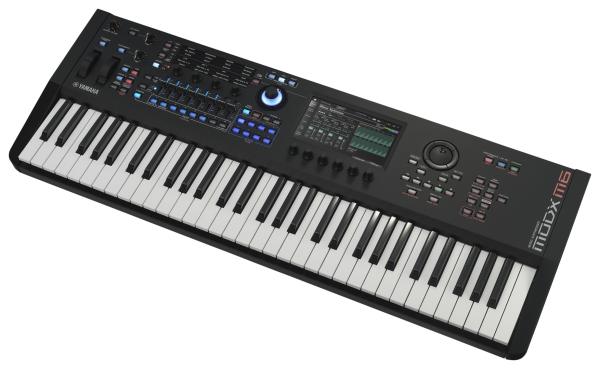

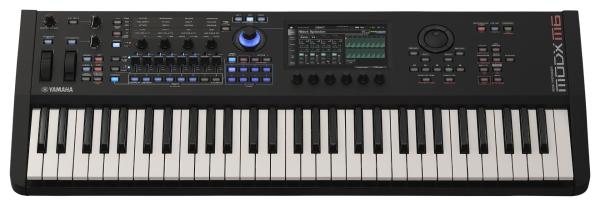

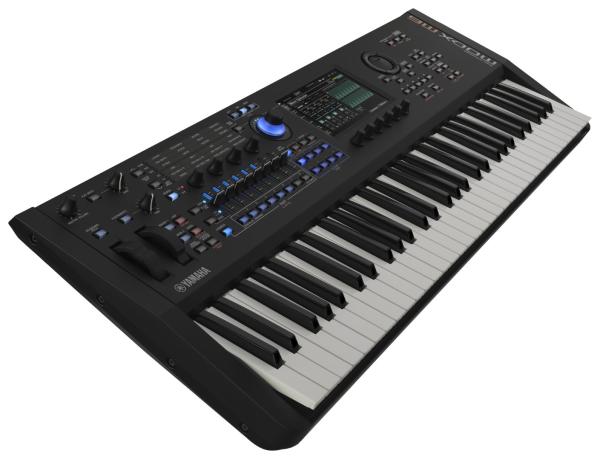

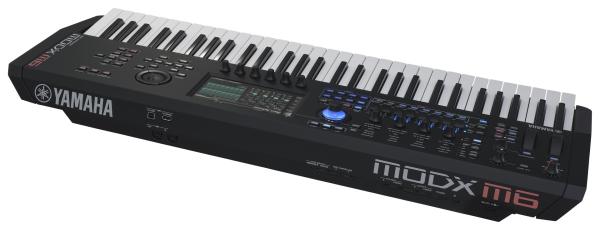

Yamaha MODX M6
The Yamaha MODX M6 is a powerful stage synthesizer that combines three complementary sound engines to deliver an exceptionally rich sound palette. Designed for discerning musicians, it combines cutting-edge technology, expressiveness, and ergonomics for modern music creation.
The AWM2 engine faithfully reproduces acoustic instruments with impressive realism, while the FM-X generates modern, complex tones with precise textures. The new AN-X engine brings the warmth and character typical of analog synthesizers. These three engines are united by the Motion Control Synthesis Engine, which creates smooth and dynamic transitions between sounds for lively and evolving performances.
The 61-note semi-weighted FSB keyboard offers a balanced touch between responsiveness and comfort, ideal for expressive playing on stage and in the studio. The high-resolution controllers, eight faders, six Display Knobs, and the central Super Knob allow for full and intuitive real-time parameter control.
Beneath its elegant design, the MODX M6 hides remarkable power: up to 268 voices of cumulative polyphony, 10.7 GB of internal sample memory, and 1.9 GB of user flash memory. It features a 16-track sequencer, over 10,000 arpeggio patterns, and offers comprehensive real-time modulation. Multi-channel USB connectivity and MIDI 2.0 compatibility ensure seamless integration with your computer and DAW.
Cubase AI software is included for recording, editing, and mixing your productions. Additionally, the Expanded Softsynth Plugin (ESP) allows you to use a software version of the MODX M6 in your DAW, for a consistent and efficient workflow.
Polyphony: Up to 268 voices (AWM2: 128, FM-X: 128, AN-X: 12)
Sound Engines:
AWM2: 128 voices, 128 elements per part, 10.7 GB of internal waves, 1.9 GB of user samples
FM-X: 8 operators, 88 advanced FM synthesis algorithms
AN-X: 3 oscillators, noise generator, vintage analog sounds
Motion Control Synthesis Engine: Unified control of all 3 engines for expressive playing
Sequencer: 16 tracks, 128 patterns, 128 songs
Arpeggiator: Up to 8 simultaneous parts, 10,922 presets, 256 users
Built-in effects: 13 Reverbs, 91 variations, 91 inserts (A and B), 28 masters
Equalizers: 5-band Master EQ, 2- or 3-band Part EQ
Physical Controls:
8 faders with LEDs
4 assignable potentiometers
1 Super Knob
2 assignable switches
8 Scene Switches
Pitch bend and modulation wheel
Portamento buttons (Switch and Time)
Display: 7" (178 mm) TFT color touchscreen
Connections:
Audio Outputs L/Mono & R: 2x 6.35 mm TRS jacks
Audio Inputs A/D L/Mono & R: 2x 6.35 mm TRS jacks
Headphone Output: 6.35 mm TRS jack
MIDI In/Out: 2x 5-pin DIN
Pedal Inputs: 4x 6.35 mm TRS jacks (volume, footswitch, sustain, expression)
USB: Type A & B (USB to Device / USB to Host)
Software Compatibility: Cubase AI (included), Expanded Softsynth Plugin (ESP)
Dimensions: 882 x 347 x 117 mm
Weight: 6.6 kg
Power Supply: AC adapter included
Included Accessories: AC adapter, quick guide, Cubase AI & ESP download code
