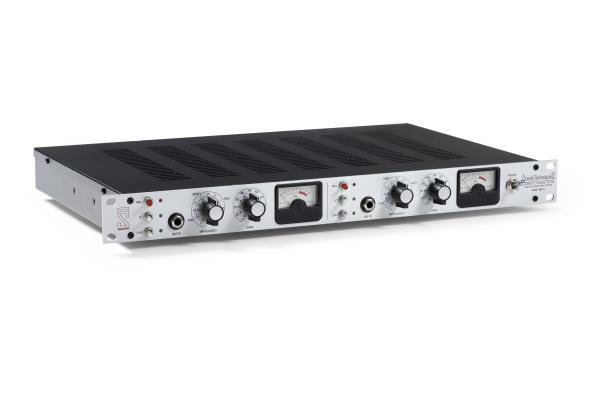

Warm audio JUDE-MP2
The Warm Audio JUDE-MP2 is a dual-channel microphone preamplifier designed in collaboration with Sound Techniques and inspired by the famous A-Range consoles used in British studios during the 1960s and 1970s.
Each channel features discrete Class A 3035 amplification paired with custom-wound CineMag USA transformers. This design delivers a rich, deep, and musical sound suitable for vocals, guitars, pianos, drums, and stereo recordings alike.
The JUDE-MP2 features an independent 9-position Z-Match control on each channel. This system allows you to adjust the interaction between the microphone and the preamplifier by varying the input impedance, making it possible to fine-tune gain, transient response, frequency balance, and harmonic character based on the microphone and source being used.
With up to 76 dB of gain per channel, 48V phantom power, polarity reversal, a line-level switch, and analog VU meters, the JUDE-MP2 offers a comprehensive solution for mono, dual-mono, or stereo studio recording.
Number of channels: 2
Circuitry: Sound Techniques A-Range
Amplification: Dual-discrete Class A 3035 circuit on each channel
Z-Match: Independent 9-position impedance selector on each channel
Input gain: Variable based on Z-Match setting
Preamp gain: 65 to 76 dB per channel (40 Ω source impedance)
Mic input impedance: 60 Ω / 200 Ω / 1.5 kΩ
Input transformers: Custom-wound CineMag USA, 3 impedances
Output transformers: Custom-wound CineMag with high-purity nickel core
Capacitors: Audio-grade Nichicon and Wima
EIN: -128 dBu (A-weighted)
Self-noise: -99 dBu (A-weighted)
THD: 0.008%
Frequency response: 10 Hz – 25 kHz (+/- 2 dB)
Phantom power: 48 V
Polarity reverse: Yes
Line level switch: Yes
Level indicators: Analog VU meters

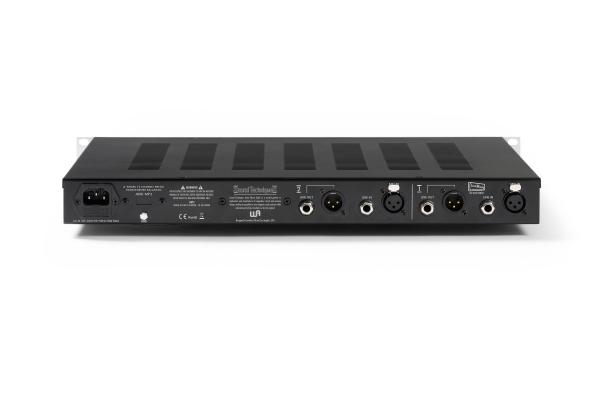

Mic inputs: XLR
Jack inputs: 6.35 mm (1/4") TS/TRS
Outputs: XLR and 6.35 mm (1/4") TRS line level
Faceplate: Aluminum
Chassis: Steel
Format: 19-inch rack / 1U
Dimensions: 483 x 44 x 305 mm
Weight: 5.22 kg
Euroguitar Referenz : 125088
